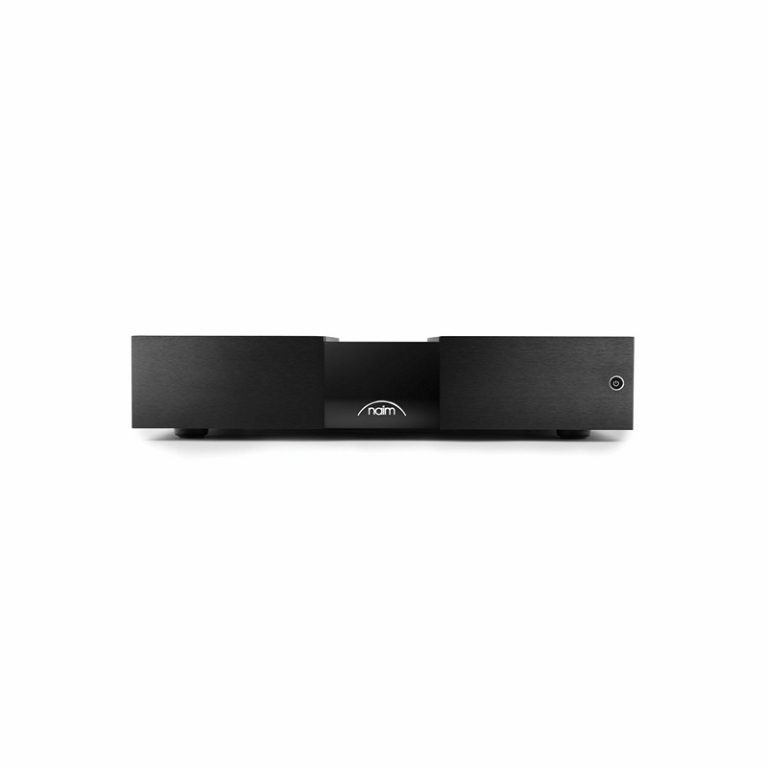

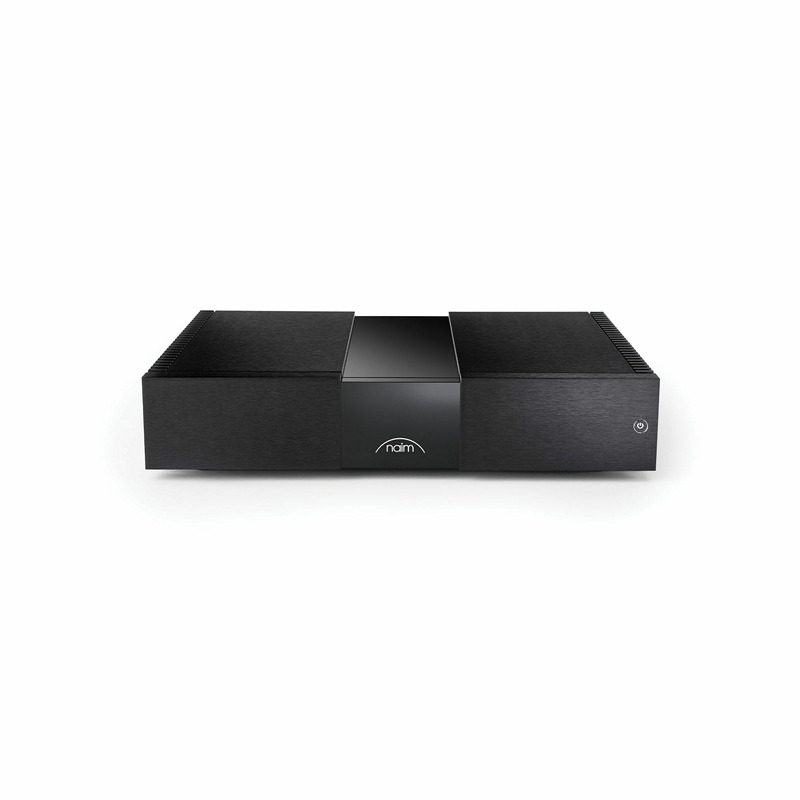

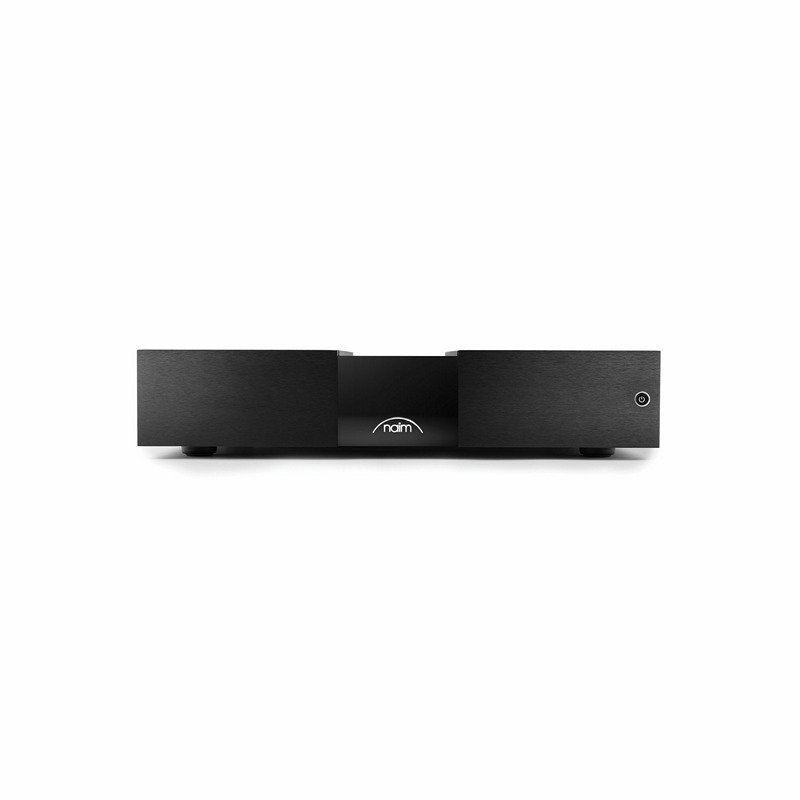

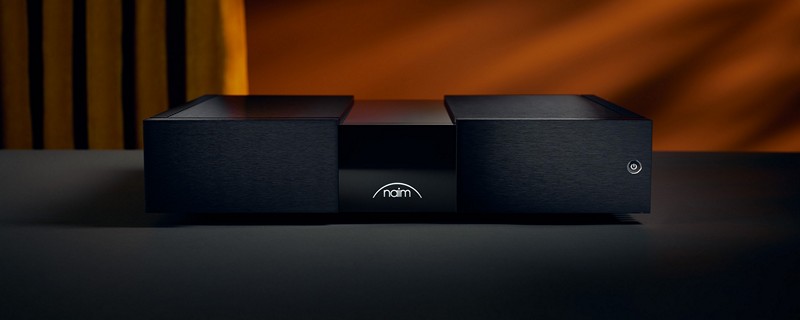

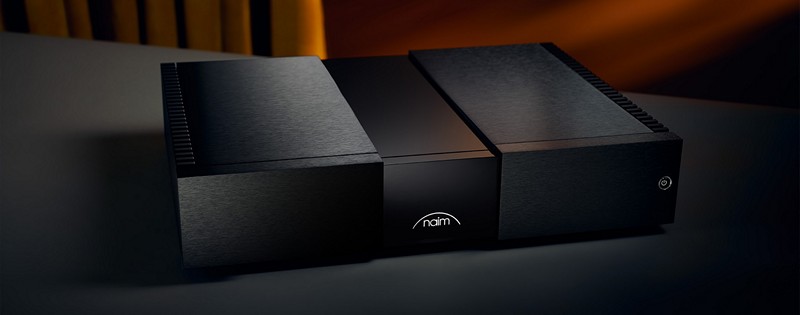

NAP 350
Power amplifier
מידע נוסף
| מותג | Naim Audio |
|---|
מידות
- גובה 9.15
- רוחב 43.2
- עומק 31.75
31,000.00 ₪
Our highly dynamic monoblock power amplifier
A benchmark amplifier; a pair of NAP 350s offer precise musical performance. Designed to effortlessly drive large and demanding loudspeakers, capturing the true dynamics of music.
The NAP 350 is a pure class-AB linear amplifier, running from fully regulated DR power supplies; producing 175W into 8 ohms and 345W into 4 ohms. It can deliver peak power of up to 1.7kW to drive impedance dips of complex speaker crossover networks. The input is via a balanced XLR socket, facilitating industry-wide compatibility.
Under the guidance of our Technical Director, our engineers have developed innovative electronic circuits to give the New Classic products excellent audio performance. The NAP 350 has a new high-current output stage that uses matched pairs of Statement NA009 custom power transistors. Combined with our acclaimed DR technology, which guarantees a stable and low-noise power supply, the NAP 350 delivers high power with precision and speed.

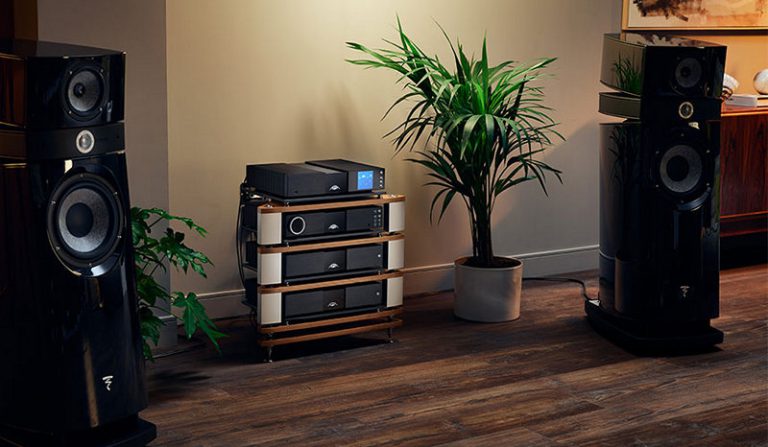

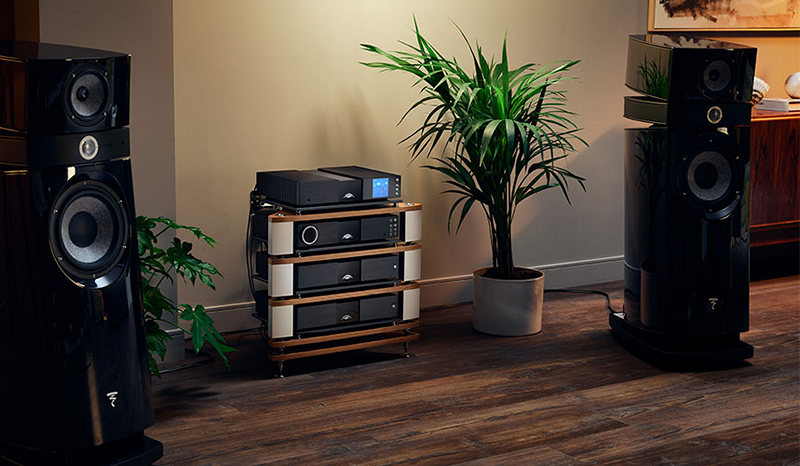

NAP 350 combines perfectly with the NSS 333 streamer and the NAC 332 preamplifier.
Naim products are designed to be both contemporary and timeless. Our creations forgo any unnecessary embellishment that would detract from the performance and sound quality.

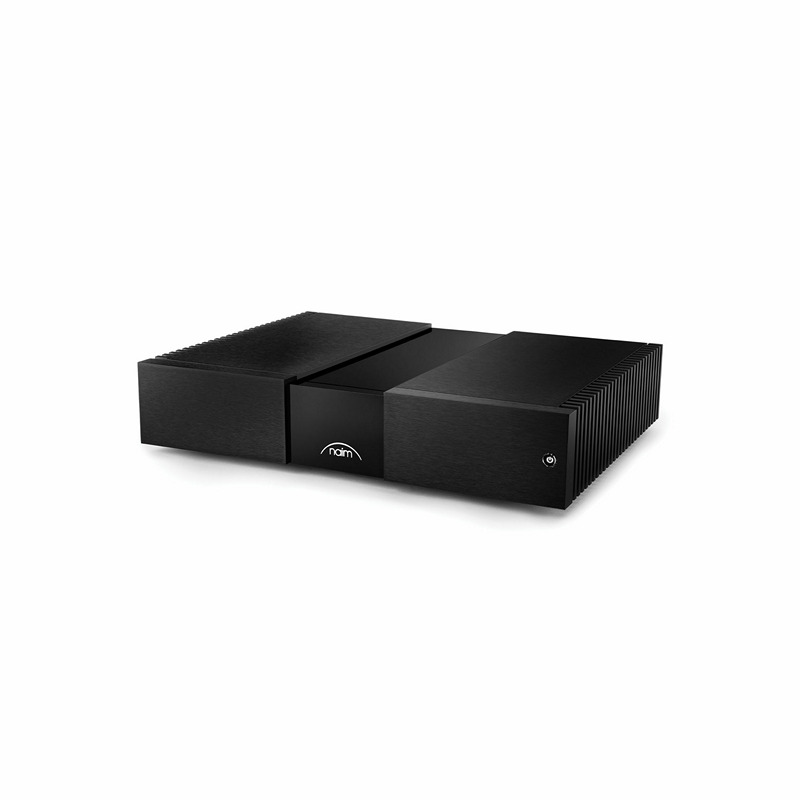

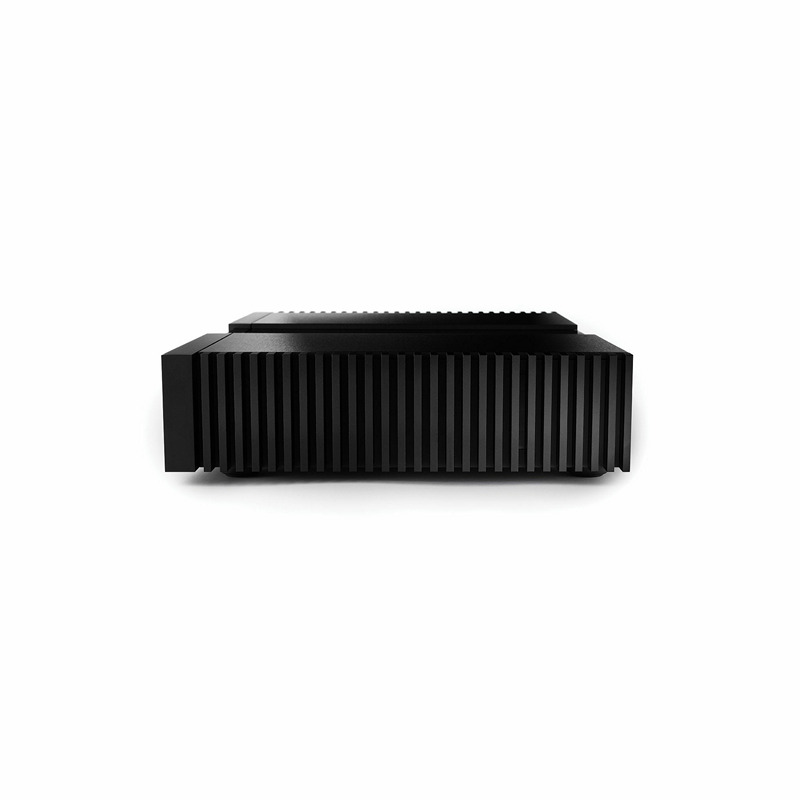

The NAP 350 combines a sleek design and premium materials such as highly thermally conductive aluminium alloy heatsinks.
Our founder, Julian Vereker, immediately understood the many benefits of aluminium as a material for wrapping Naim electronic components. He knew that delicate audio components are very sensitive to the effects of magnetic fields, unstable temperatures, unwanted vibrations, etc.
Specifications
| Product Type | Amplifier |
| Damping factor into 8 | 36 |
| Signal to noise ratio ref 100W 8 A-weighted | ref 175W 8Ω A-weighted: 114dB |
| Signal to noise ratio ref 1W 8 A-weighted | 91dB |
| Input signal for clipping | 1.33V RMS |
| Peak current into 1 (1kHz 1mS) | +/-42 amps peak (1.7kW peak power) |
| Burst power 2 | 610 Watts 2Ω @1% THD+N |
| Analogue Input | 1 x 47kΩ True balanced via XLR 1 x 34kΩ singled ended via legacy adaptor lead |
| Crosstalk | NA (mono) |
| THD + N | 0.006% |
| Frequency Response | -3dB @ 1.4Hz to 100kHz |
| Gain | +29dB |
| Weight | 36.38lbs (16.5kg) |
| Dimensions (HxWxD) | 35/8x17x121/2" (9.15×43.2×31.75cm) |
| Mains Supply | 115V or 230V, 50/60Hz |
| Power Consumption | Passive consumption: 24W (idle)
Standby consumption: <0.5W |
| Power Output | 175 Watts 8Ω @0.1% THD+N (195W @1%) 345 Watts 4Ω @1% THD+N |
