XR100

• 75 to 600 Watts
• Ported 4-Way Floor Standing

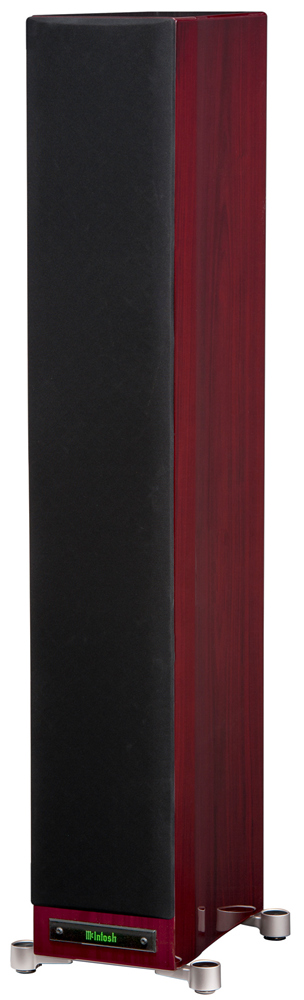

The XR100 Floor Standing Loudspeaker is sleek and contemporary in appearance while producing full range audio reproduction typical of much larger cabinet designs. Fine gloss wood finishes are offered in Black and Red Walnut (shown). The magnetically attached grille is acoustically transparent and covered with neutral black cloth. Our patented Solid Cinch™ speaker binding posts easily but securely attach the speaker cables to prevent them from coming loose and possibly causing a short; the binding posts are gold-plated to prevent corrosion and ensure a quality signal is delivered to your speakers.

Unique front panel McIntosh logo may be illuminated when configured with a McIntosh system. Amplifiers from 75 to 600 Watts are appropriate power for XR100 speakers. Spikes and furniture glide feet are included.

ELECTRONIC SPECIFICATIONS

• Impedance Nominal

  8 Ohms

• Power Rating

  75 to 600 Watts

• Frequency Response

  30Hz to 45kHz

• Sound Pressure Level, 2.8V/1m

  87dB

• Crossover

  300Hz, 2kHz, 8kHz

DRIVER SPECIFICATIONS

• Number of Woofers

  4

• Woofer Size

  6"

• Woofer Type

  Cast Frame, LD/HP^®, Poly Cone

• Number of Midranges

  10

• Midrange Size

  2"

• Midrange Type

  8 Inverted Titanium Dome Midranges covering 300Hz to 2kHz, and 2 Inverted Titanium Dome Midrange-Tweeters covering 2kHz to 8kHz

• Number of Tweeters

  1

• Tweeter Size

  3/4"

• Tweeter Type

  Titanium Dome

GENERAL SPECIFICATIONS

• System Type

  Ported 4-Way Floor Standing

• Grille

  Black knit cloth, magnetically attached

• Available Finishes

  Red Walnut, Black

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  8" (20.3cm) x 51" (129.5cm) x 18-1/2" (46.9cm) (including cables and connectors)

• Unit Weight

  68.5 lbs (31.1 kg)

• Shipping Weight

  83 lbs (37.6 kg)
