OLYMPICA NOVA W

מידע נוסף

מותג

Sonus Faber

EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
EMANUELE TORTORA 2017
Full Screen

מידות

NATURAL FIDELITY

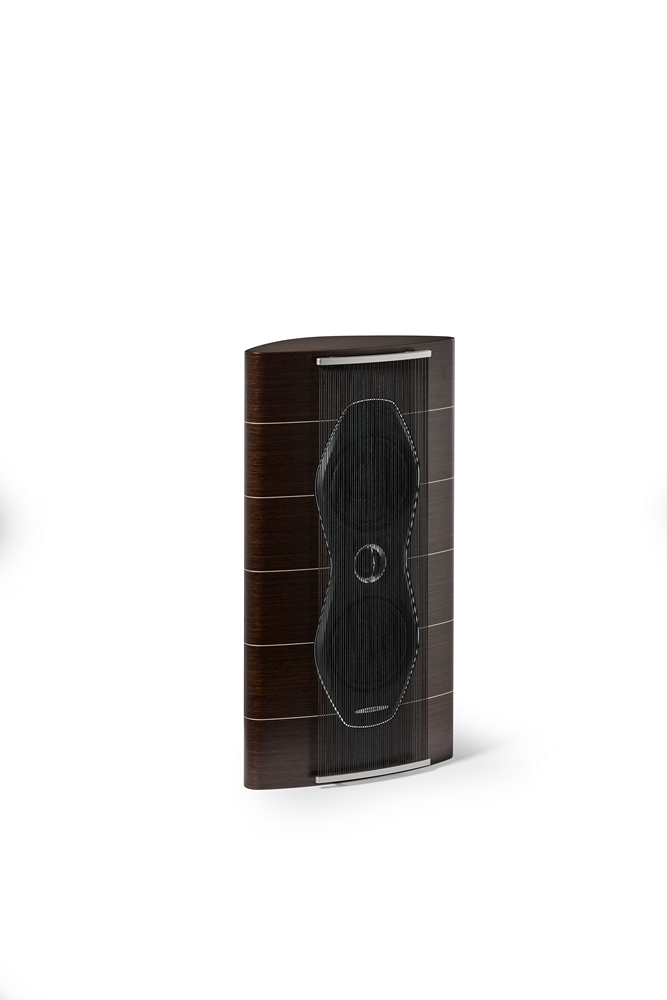

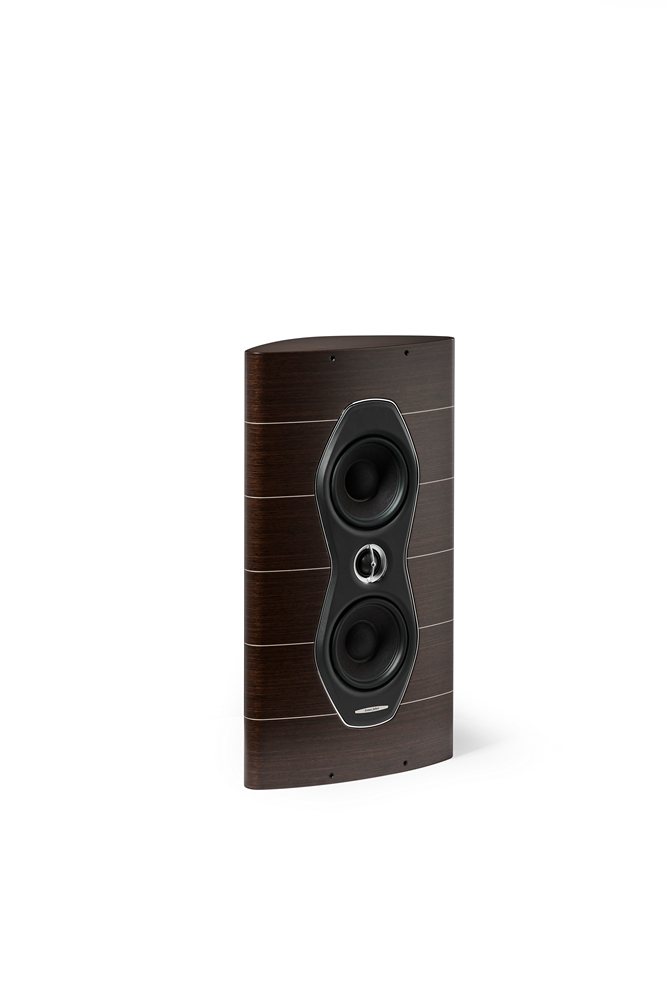

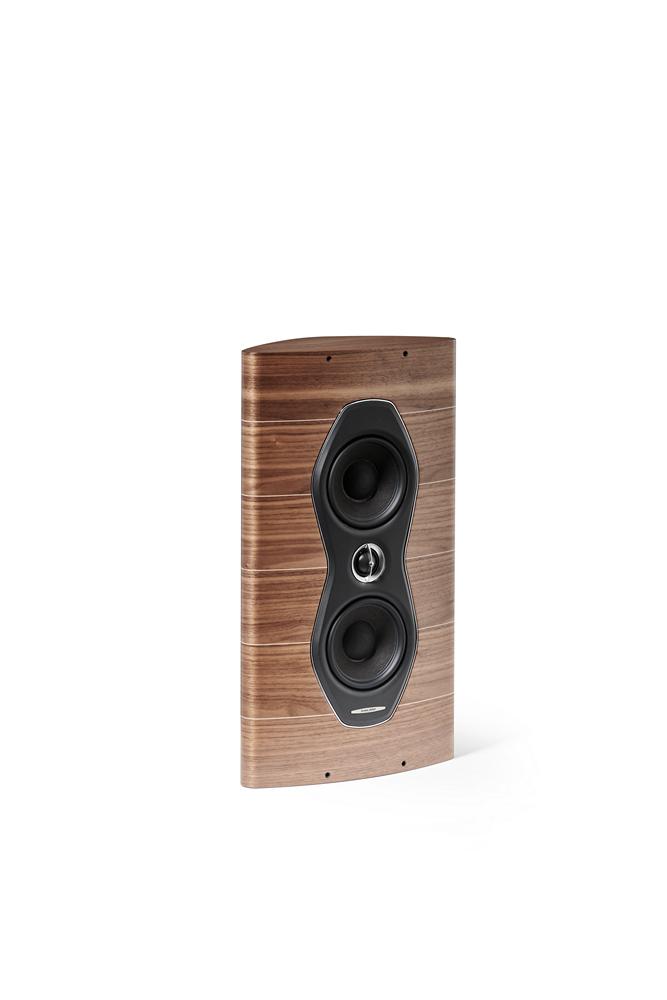

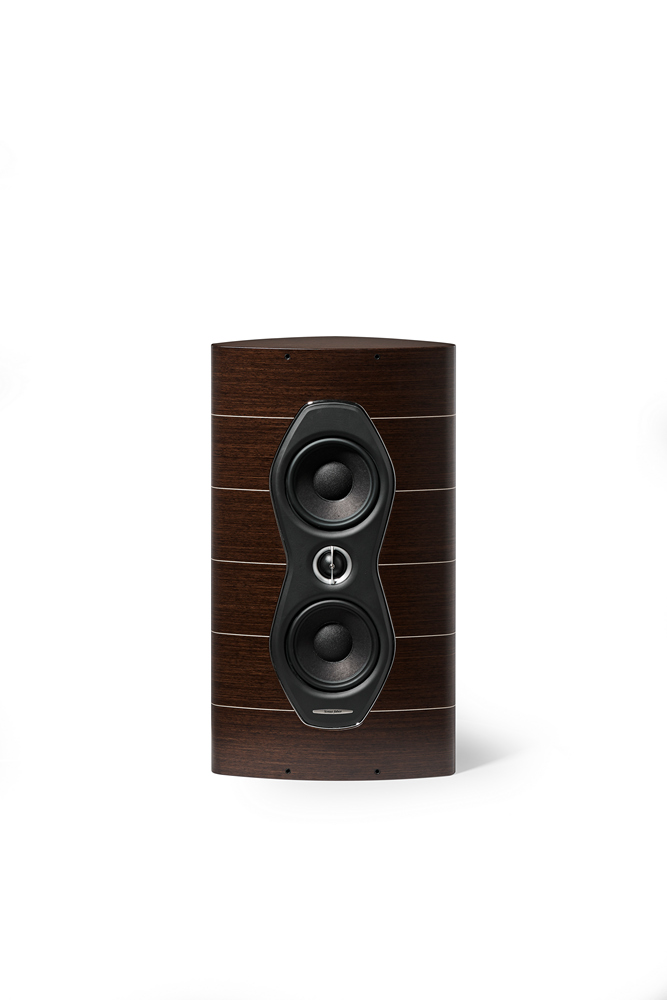

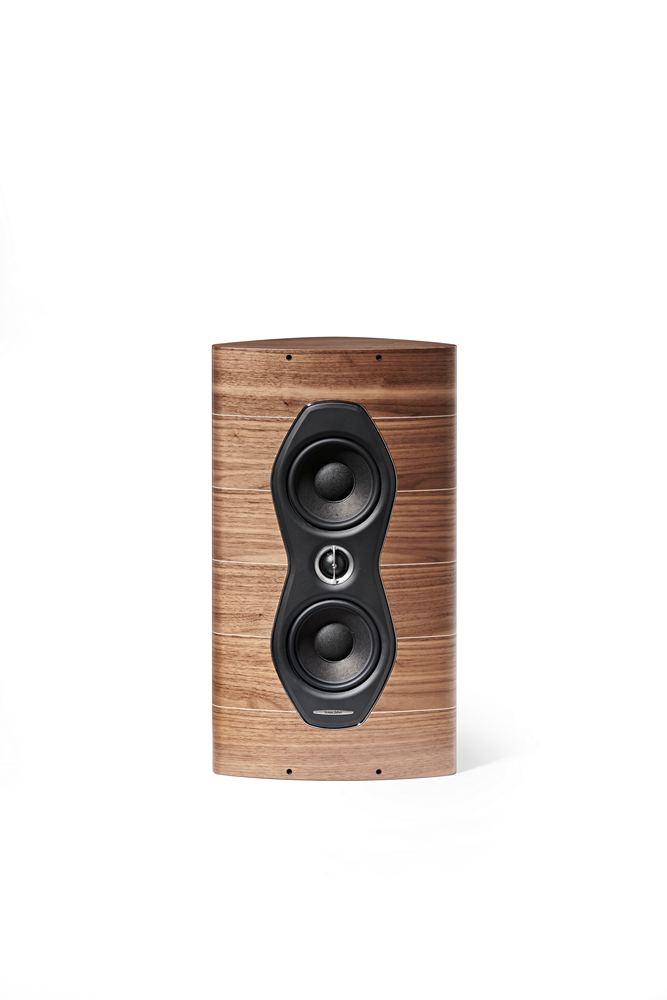

OLYMPICA NOVA W

Enjoy your music, everywhere

Perhaps the most interesting addition to the line,
the wall-mounted speaker makes the collection complete and versatile.

ESSENCE OF A BRAND

Since 1983, many moments have marked the history of Sonus faber; the launch of the Olympica Collection 6 years ago is one of them. One of the first lines presented as a complete family of products, but above all, the very first one to feature original drivers, entirely designed in Sonus faber.
Olympica Nova is the second generation of the iconic family of 2013, improved in its form and substance, imbued with the timeless values that inspired us in creating the original line.
The result is a new Collection that embraces the most advanced technologies that already enhance our most prestigious creations.

ORGANIC SHAPE

The lack of flat and parallel walls improves enclosure performance and maintains the typical asymmetrical Lute shape of first generation Olympica.
The asymmetrical shape of the cabinet is an original design concept that allows versatile positioning of the speakers to tune the bass response in any room.
Inspired by nature, the lines follow the flow of a circular spiral motion, achieving a more organic cabinet structure.
No longer just a functional element added to handle airflow, the reflex duct is now fully integrated into the cabinet, further improving the speed and transparency of sound.

FEATURES

Olympica Nova Wall ensures a compelling music or cinema experience in any environment.

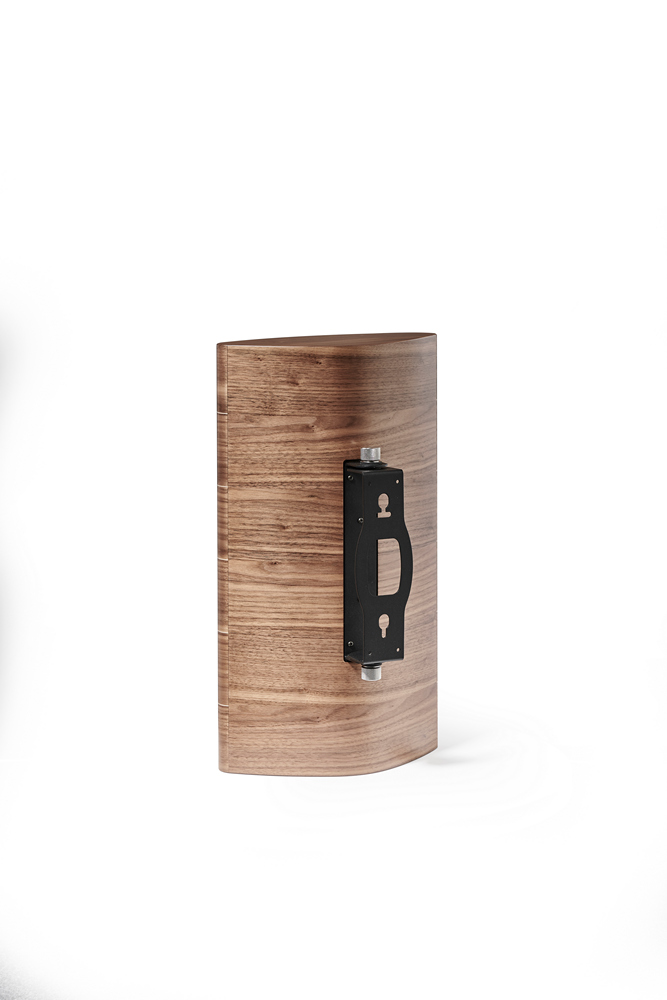

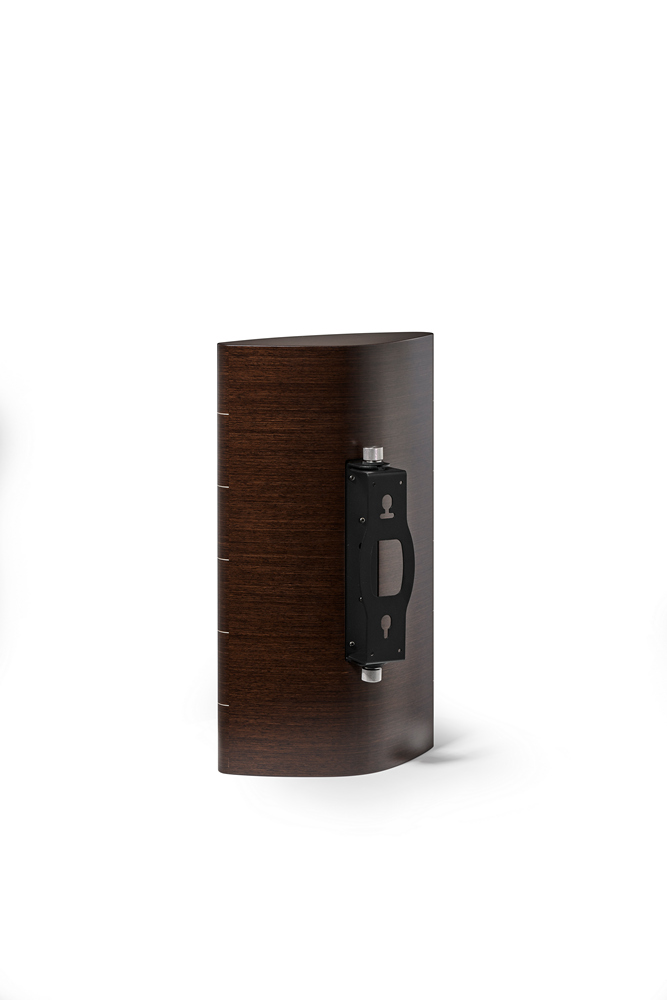

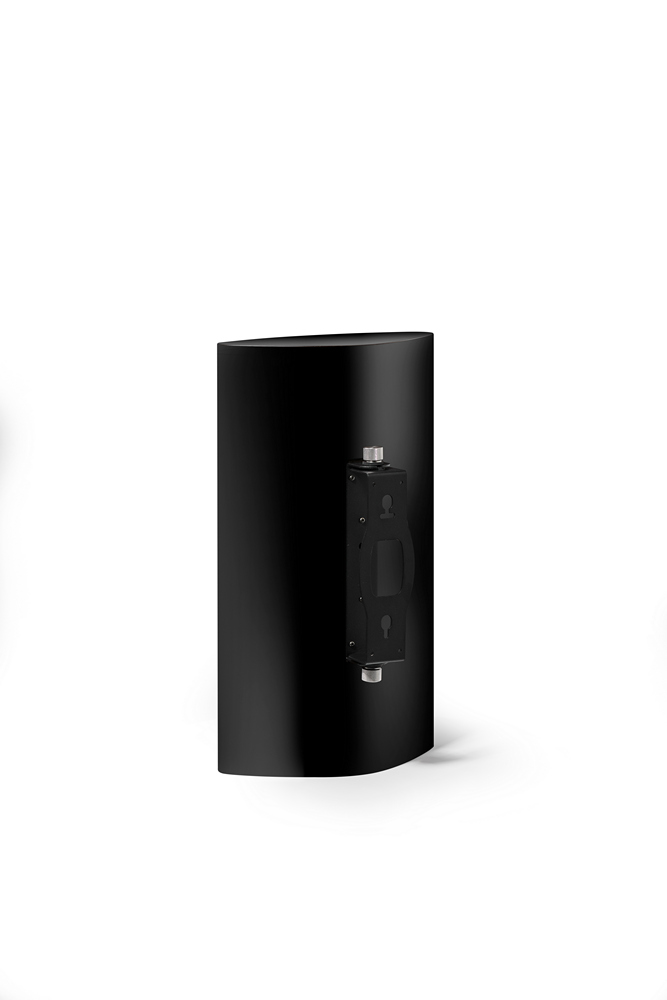

With an included mounting bracket, this model is easy to install and optimized for near-boundary placement.

STRUCTURAL RIGIDITY

The entire structure of the acoustic enclosure has been redesigned: Similar to the Homage Tradition and Reference Collections, the walls are made with eight layers of bended wood, providing the cabinet with extreme rigidity.

CROSSOVER

The crossover network implements Paracross Topology™, making the crossover less sensitive to radio-frequency interference, improving transient response and lowering noise floor. The filtering topology features new exclusive Clarity Cap capacitors, customized for Sonus faber.

MIDWOOFER

Follows the same construction of the midrange of its siblings, with 2 main differences. The Dust-cap, coated in fabric to provide an air-tight seal to maximizes the moving surface, increases air movement without distortion. The moving coil optimized for bass performance with much longer throw, improves driver excursion and the overall magnetic field.

NATURAL LEATHER

The natural leather embellishes the drivers mask. Genuine Italian leather that, as per our brand’s tradition, is applied by hand in the production department in Vicenza.

TWEETER

The 28 mm silk soft dome tweeter features the DAD™ technology (Damped Apex Dome™) that enhances the smoothness and extension in the high frequency by applying local dampening to the apex typically responsible for anti-phase behavior of soft dome diaphragms. The DAD™ structure has been totally redesigned; a solid piece of aluminum die-cast includes both arch and ring on the dome to increase the strength and accuracy of the system.

PASSIVE RADIATOR

The 150 mm passive radiator takes up the fine tuning of the loudspeaker.

WOOD

Just like the rest of the cabinet, the front baffle is made in the walnut or wengè hand-finished natural wood. Our designers wished to pay homage to the most representative material of Sonus faber, making it even more of a standard-bearer.

TECHNICAL SPECIFICATIONS

SYSTEM

2 way, passive radiator, wall mount loudspeaker system.

LOUDSPEAKERS

Tw: H28 XTR3. Neodymium “cup design” motor system with DAD™, Ø 28 mm
Mw: MW15 XTR2-04, CCAW wire on a “eddy current free” voice coil, Ø 150 mm

CROSSOVER

2.500 Hz

FREQUENCY RESPONSE

50 Hz – 35.000 Hz

SENSITIVITY

87 dB SPL (2.83V/1 m)

NOMINAL IMPEDANCE

4 ohm

SUGGESTED AMPLIFIER POWER OUTPUT

35 W – 250 W, without clipping

DIMENSIONS (HXWXD)

562 x 309,3 x 234,5 mm
22.1 x 12.1 x 10.9 in

WEIGHT

9 Kg ea – net weight
19.8 Ib ea – net weight



AVAILABLE FINISHES:
