NAC 332

Pre amplifier

מידע נוסף

מותג	Naim Audio

מידות

40,000.00 ₪

צור איתנו קשר ב

הוסף לסל הקניות

Pure Analogue Preamplifier

The NAC 332 preamplifier is the digitally controlled, pure analogue centre of your system. Each and every audio stage is meticulously designed using discrete transistors, building on 50 years of experience in manufacturing high-performance audio systems. It features a precision fixed resistor volume control and a class-A headphone amplifier, with XLR and RCA outputs.

NAC 332

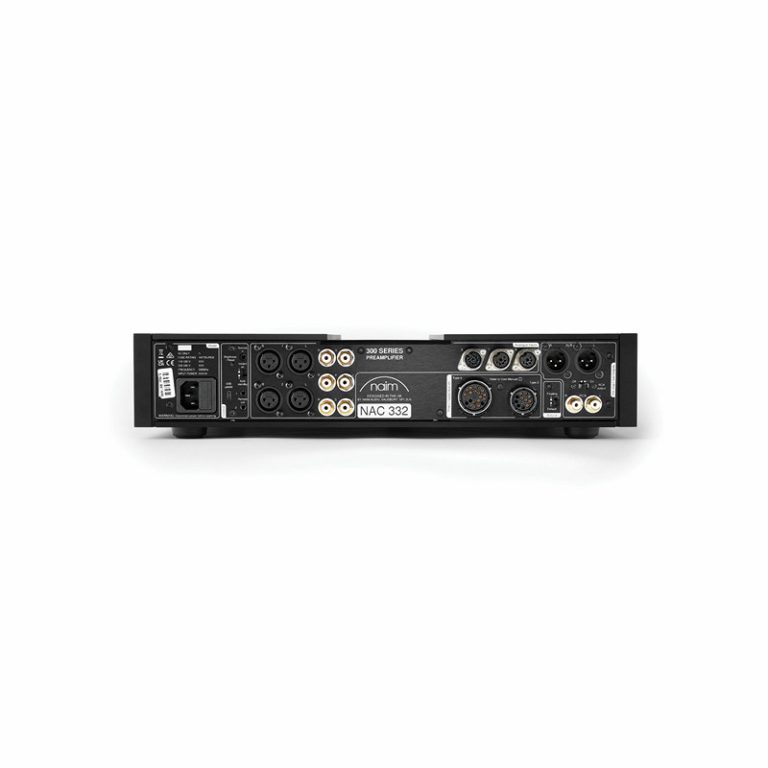

Combining performance and versatility, the NAC 332 can be easily configured to suit your audio world. Map any input button to any of the 8 input sockets, such as balanced XLR, DIN and RCA, allowing simple connection to any audio source. The NAC 332 has a powered DIN socket for connection with the NVC TT phono stage. The front panel has a ¼ inch headphone socket. Behind the socket is a 1.5W state-of-the-art headphone amplifier. On the rear panel, twin outputs of XLR and RCA allow connection to a variety of power amplifiers, or the ability to bi-amp.

Naim know-how

Under the leadership of our Technical Director, our engineers have developed innovative electronic circuits to give the New Classic products excellent audio performance. The best components have been auditioned for their audio performance, such as through-hole resistors used in the volume control. The architecture of the Statement volume control is carried over to the NAC 332, using reed relays to switch between the volume resistors. This ensures premium sound quality, the ability to have adjustable input sensitivity and the capability to set a maximum volume level.

A timeless design

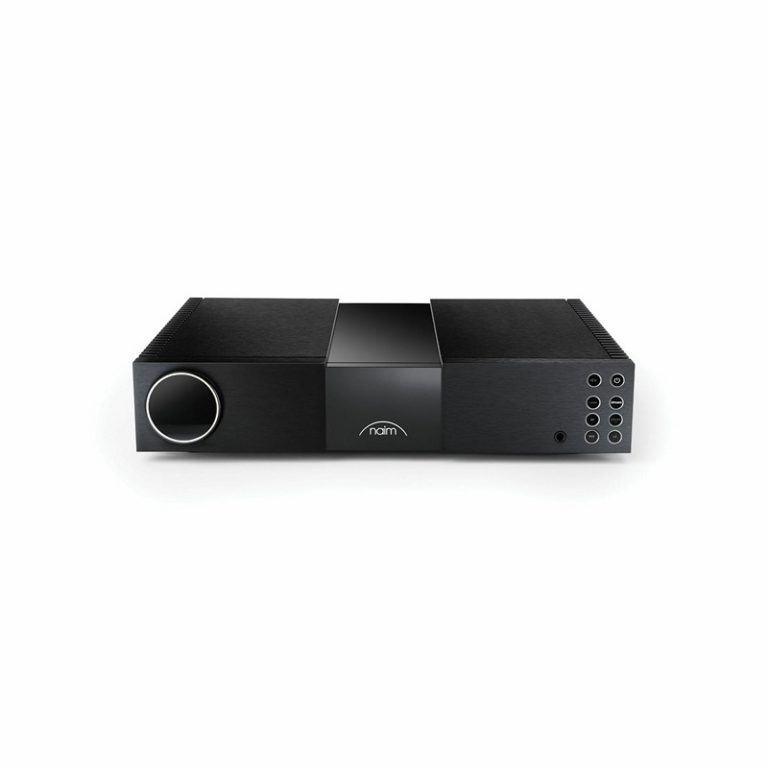

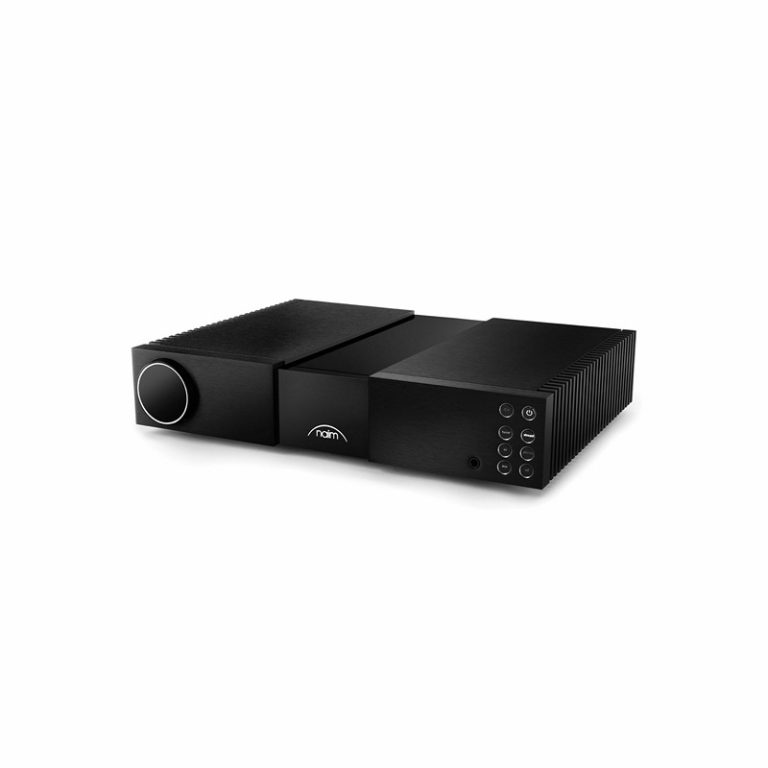

Naim products are designed to be both contemporary and timeless. Our creations forgo any unnecessary embellishment that would detract from the performance and sound quality. The NAC 332 combines a sleek design, premium materials, adjustable logo brightness and engineered touch points such as the precision raced bearing volume control.

Perfect integration in a complete system

Bi-directional wireless inter-product communication is used to connect the NAC 332 to the NSS 333 streamer, making them as easy to use as a single-box system. Optical control synchronises seamlessly with New Classic power amplifiers, such as the NAP 350.

Easy to use

Simplicity is the key. Buttons on the front panel allow quick access to inputs, volume, standby mode and mute. The bi-directional ZigBee remote allows complete control even without direct visibility of the product. The NAC 332 automatically detects no music and after 20 minutes will put the system into 0.5W stand-by mode.

The story of Naim and aluminium

Our founder, Julian Vereker, immediately understood the many benefits of aluminium as a material for wrapping Naim electronic components. He knew that delicate audio components are very sensitive to the effects of magnetic fields, unstable temperatures, unwanted vibrations, etc.

Specifications

Product Type	Preamplifier
Control	Bi-directional ZigBee remote and front panel. Inter-product communications with NSS 333 via ZigBee Optical 3.5mm output for synchronised control of compatible products e.g. NAP 250/350

Audio Inputs
Analogue	1 x 8-pin DIN (47kΩ, 2.2V typical, 9.5Vrms Max) 2 x 5-pin DIN (47kΩ, 2.2V typical, 9.5Vrms Max) 3 x RCA pair (47kΩ, 2.2V typical, 9.5Vrms Max) 2 x XLR balanced pair (100kΩ, 2.2V typical, 9.5V max) 8-pin DIN compatible with 5-pin DIN 8-pin DIN has +/-18V (for compatible external phono stages e.g. NVC TT)

Audio Outputs
Distortion	Line: 0.003% @2.2V input volume at 0dB, 1kHz (Line: 0.018% @2.2V input volume at 0dB, 20kHz)
Crosstalk	Line: 90dB at 1kHz, volume at 0dB (Line: 70dB at 20kHz, volume at 0dB)
Analogue	1 x XLR pair (balanced 10Vrms max) 1 x RCA pair (10Vrms max) 1 x 6.35mm headphone jack (1.5W into 16Ω)
Signal-to-Noise Ratio	Line: 104dB ref 2.2V A-wtd volume at 0dB
Frequency Response	Line: 3Hz to 40kHz -3dB
Gain	Preamplifier at max volume: 15.5dB
