This “3 and 2/3 way” loudspeaker system features the patented “Stealth UltraflexTM”, for a better bass extension, the “Anima Legata” system and the “Tuned Mass Dampers”, for maximum elimination of inner spurious vibration, the patented “Zero Vibration Transmission”, for saving the listening environment from the spread of vibration and for a better performance of the infrawoofer, and the “Sound Field Shaping” technology, for a new dimensionality of sound and perceived size of the sound-stage.

FEATURES

Don't let the familiar face fool you: Aida maintains its typical design elements
that made it so recognizable but has been completely overhauled,
embracing the most advanced electroacoustic developments.

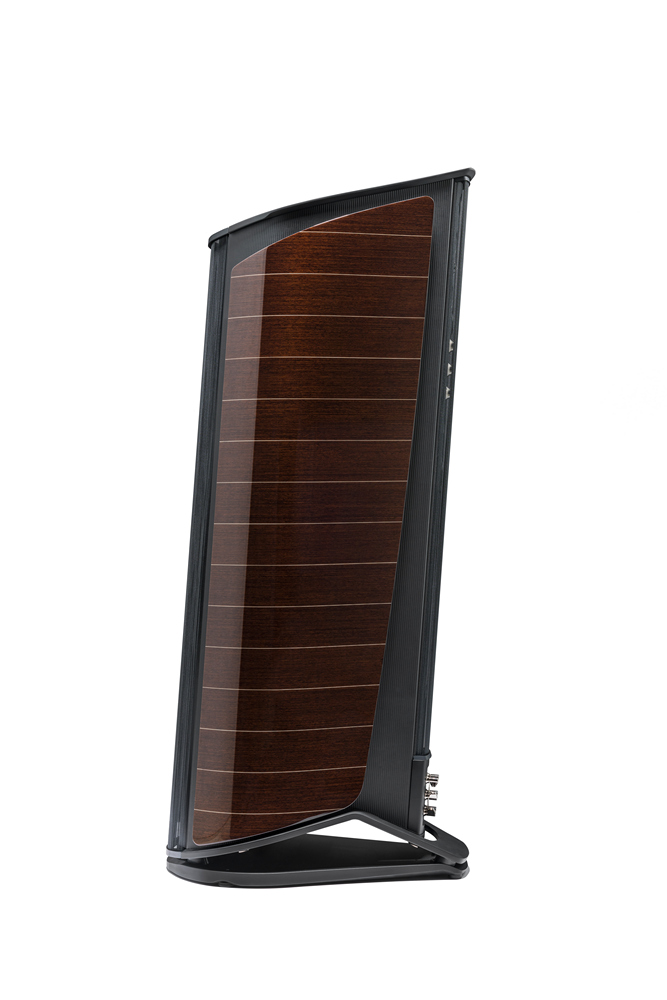

THE "SILENT CASE"

The dual "waved" curvature increases structural strength and guarantees exceptional management of the inner energy produced by the drivers.

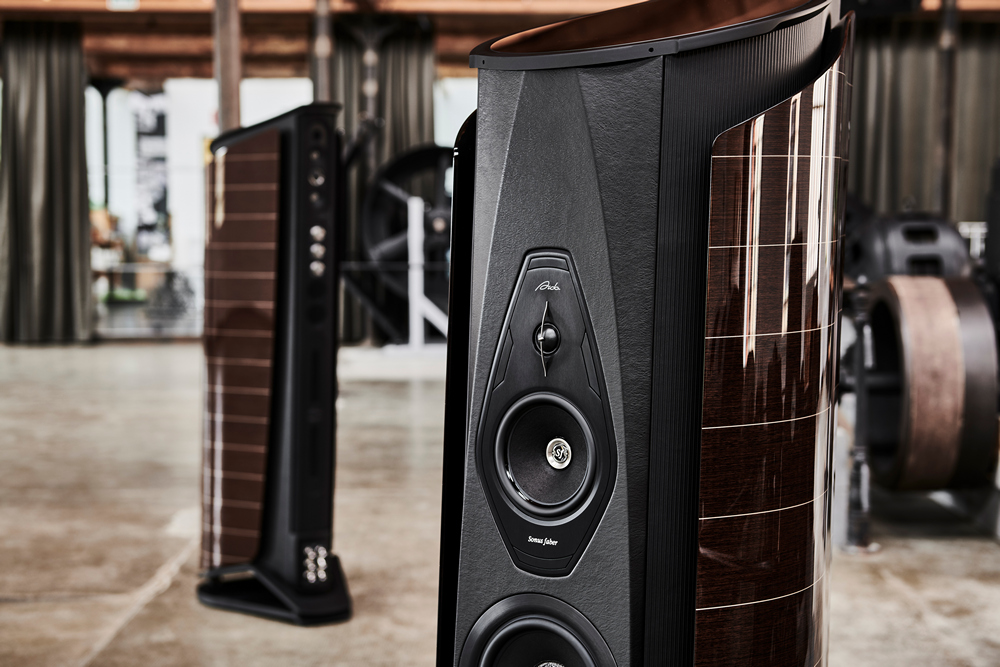

THE VOICE OF SONUS FABER

Mid and High frequencies that make the "Voice of Sonus faber" are here determined by a 28mm silk dome tweeter with ”Arrow Point” DAD™ (Damped Apex Dome), implemented with a natural wood acoustic labyrinth rear chamber, and a midrange M18XTR-04 with cellulose pulp cone and Neodymium motor system. This iconic configuration of tweeter and midrange maintain the effortless, warm and involving timber that has become our trademark.

NEODYMIUM MAGNET SYSTEM

The most radical among the new changes of Aida is the selection of all-new driver systems, all of them featuring a Neodymium motor system that the "Ultra dynamic linearity" characteristic.

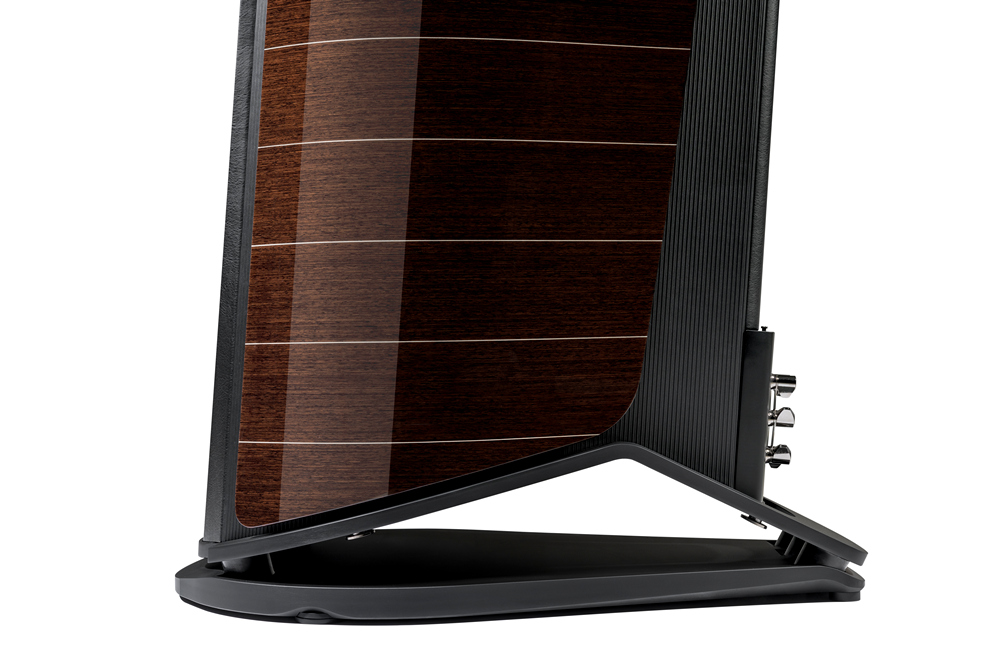

ZERO VIBRATION TRANSMISSION™

The purpose of this technology is decoupling the loudspeaker system from the ground, avoiding spurious vibration to spread in the listening environment. Springs and elastomers are placed on the base; their decoupling compliance is carefully calculated in reason of the weight of the speaker and allows a more powerful performance of the down firing infrawoofer and a perfect tuning of the entire loudspeaker system.

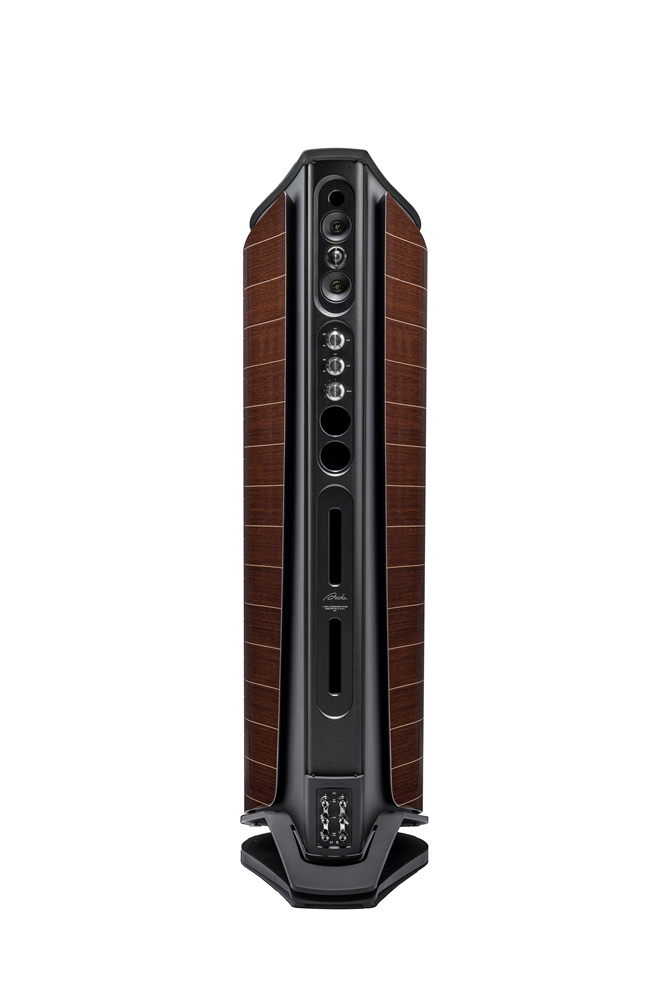

SOUND FIELD SHAPER™

This rear facing mid and high loudspeaker system is developed to make the music reproduction as natural as possible and precisely control the dimensionality and perceived size of the sound-stage. The listener will be able to optimize the Sound Field Shaper™ according to personal taste and listening room characteristics.

TUNED MASS DAMPER™

The TMD (Tuned Mass Damper™) is a device normally used in the biggest world’s skyscrapers and consists in some suspended masses placed inside of the speakers; while vibrating in antiphase, the TMD erases main vibrations and allows a clearer bass reproduction and a better silence reproduction.

THE STEALTH ULTRAFLEX™ SYSTEM

This patented system allows a great reduction of the THD (Total Harmonic Distortion) and a better bass extension while eliminating spurious vibration coming from the air passage inside the reflex duct and allowing a reduction of dimensions of acoustic chambers.

TECHNICAL SPECIFICATIONS

SYSTEM

“3 and 2/3” way, Sound field Shaper technology, “Zero Vibration Transmission™” technology, para-aperiodic vented box “Stealth Ultraflex System™” and staggered low frequency floor standing loudspeaker system

LOUDSPEAKERS

Tw: H28 XTR-04 DAD Arrow Point, Ø 28 mm
Md: M18 XTR-04 Neodymium Magnet System, Ø 180 mm
W: 2 x W22XTR-12 Fe Magnet System, Ø 220 mm
Sw: SW32XTR-08 Long Throw, Fe Magnet System, Ø 320 mm

SOUND FIELD SHAPER

Tw: 29XTR2 DAD Arrow Point, Ø 29 mm
Md: 2 x M8XTR, Ø 80 mm

CROSSOVER

55Hz – 150Hz – 200Hz – 3000Hz

FREQUENCY RESPONSE

18 Hz – 35.000 Hz, Stealth Ultraflex™ included

SENSITIVITY

92 db SPL (2.83V/1 m)

NOMINAL IMPEDANCE

4 ohm

POWER HANDLING

100W – 1KW, without clipping

DIMENSIONS (HXWXD)

1725 x 482 x 780 mm
68 x 19 x 31 in

WEIGHT

165 Kg ea – net weight
363 lb ea – net weight



AVAILABLE FINISHES:

• RED
• WENGE
