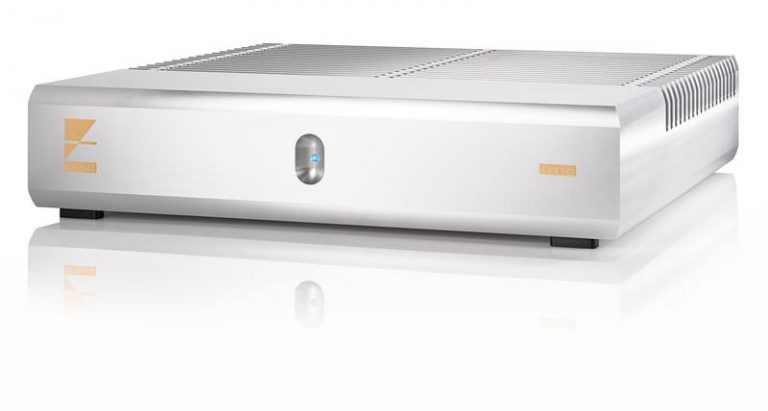

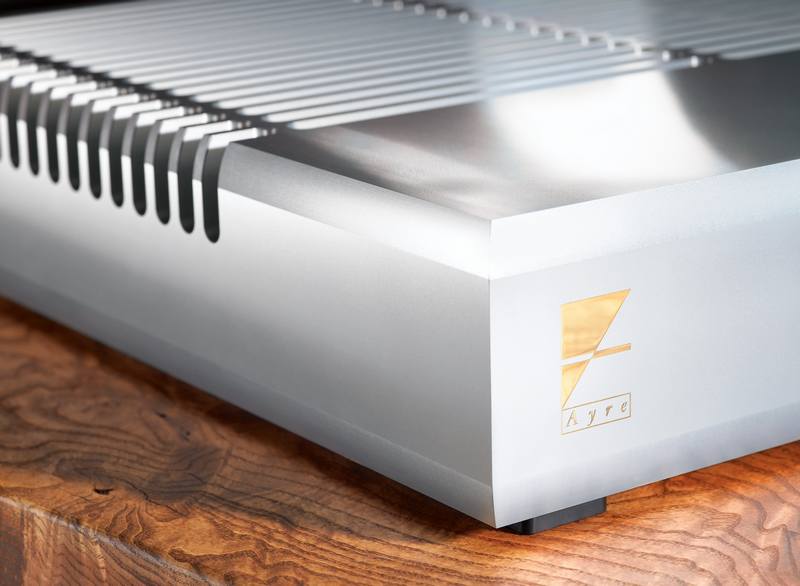

The Ayre VX-R Twenty stereo amplifier gracefully integrates all of the technology, performance, and sophistication of the world-renowned MX-R Twenty monoblocks into a single radiant chassis. Every detail in the audio path from circuit trace length to part orientation, including processes which many would consider fanatical, pushes this amplifier to the brink of perfection. The dual-transformer linear power supply using our AyreLock circuitry effortlessly drives the most demanding loudspeakers. Our exclusive EquiLock technology enhances the zero-feedback, fully-balanced circuitry for an unprecedented level of clarity and resolution. Our Double Diamond output stage offers power and control that will reveal hidden textures, unlock the most intimate details, and enter deeper into the world of music.
zero-feedback and fully-balanced discrete circuitry
Ayre Double Diamond output stage
Linear analog AyreLock power supply
Ayre’s exclusive Equilock circuit
Ultra-low loss circuit board material
Custom developed audio-grade resistors
Proprietary polystyrene capacitors
Ayre Conditioner power line RFI filter
AyreLink communication system
Power Output
200 watts per channel continuous into 8 ohms
400 watts per channel continuous into 4 ohms
Gain
26 dB
Input Impedance
2 Mohm balanced (1 Mohm per phase)
Frequency Response
DC – 250 kHz
Power Consumption
45 watts in standby mode
200 watts in operating mode, no signal
Dimensions
17.25″ W x 18.75″ D x 3.75″ H
(44cm x 48cm x 9.5cm)
Weight
78 pounds 35 kg
