NATURAL FIDELITY
OLYMPICA NOVA CII
The highest level of detail
OLYMPICA NOVA CII
מידע נוסף
| מותג | Sonus Faber |
|---|
מידות
- גובה 21.81 (71.99 stand)
- רוחב 86.6
- עומק 45.97

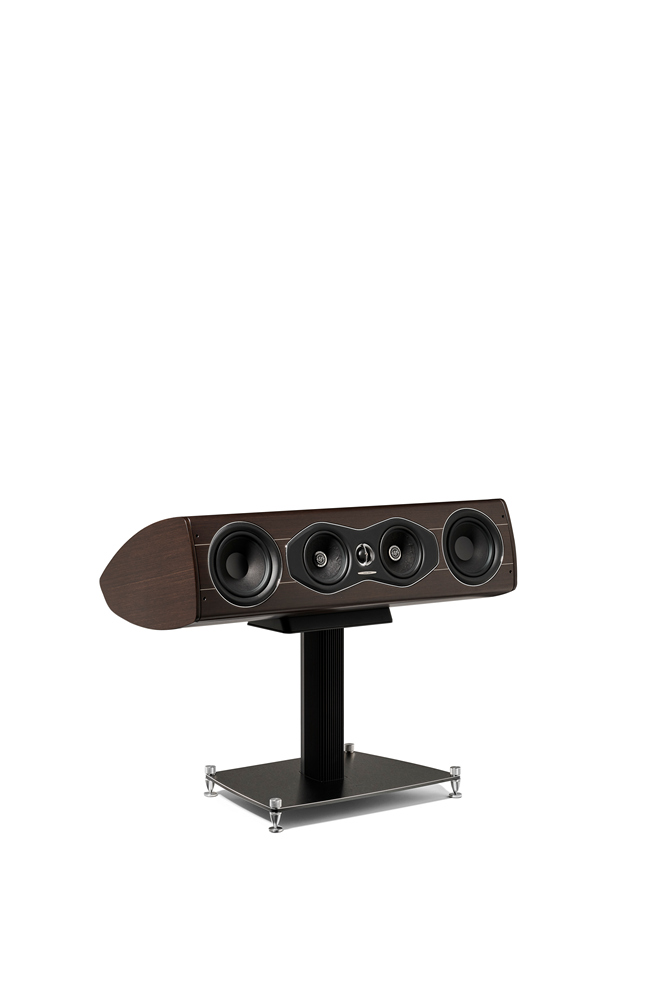

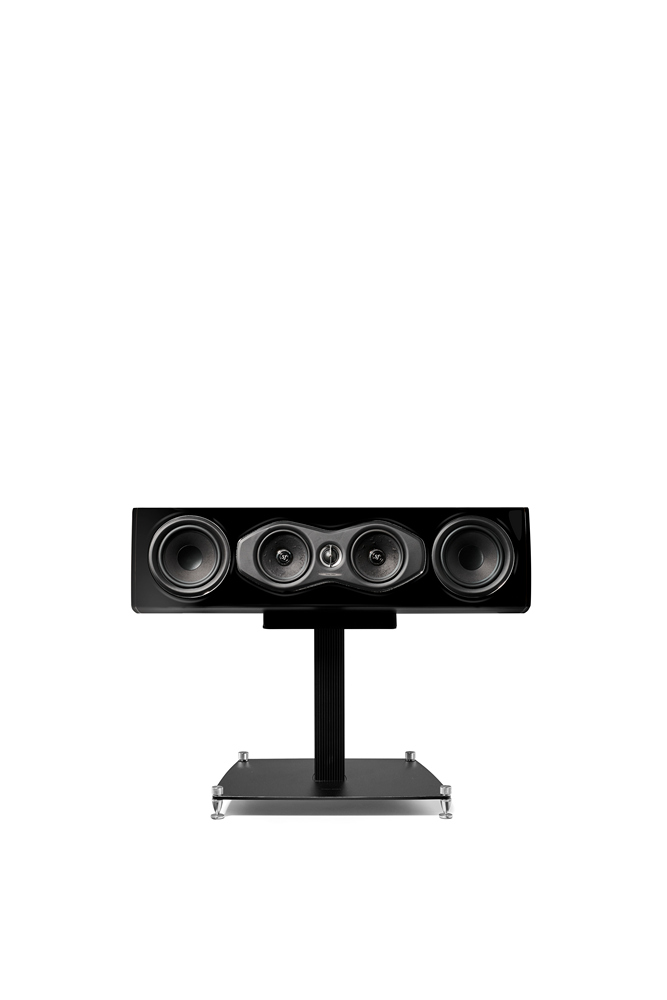

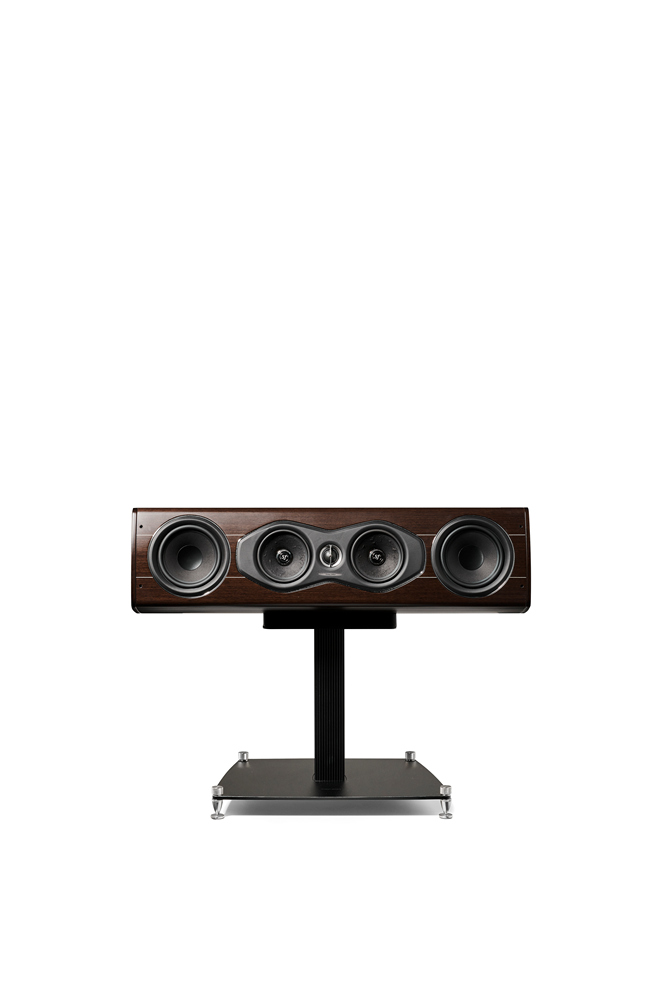

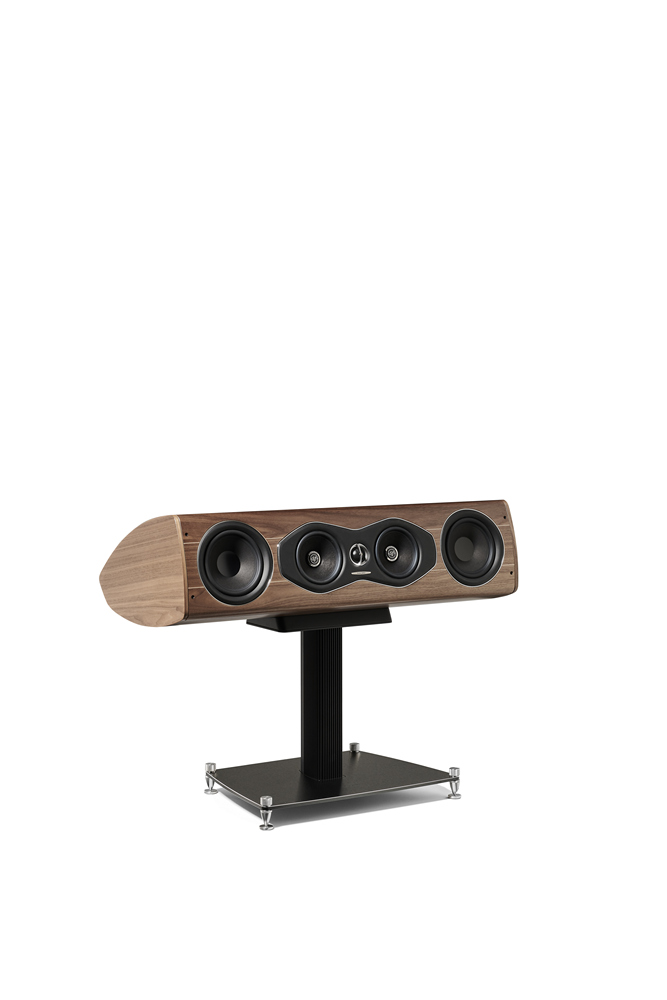

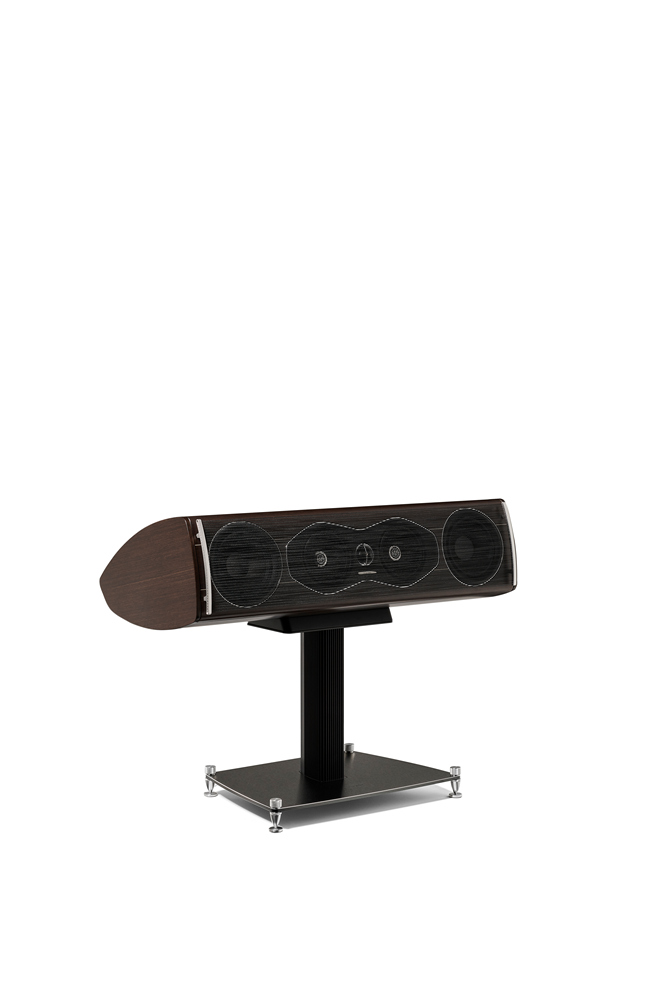

Sophisticated and refined, this center channel delivers vocals
and instruments with purity and precision for totally convincing sound reproduction.
and instruments with purity and precision for totally convincing sound reproduction.
ESSENCE OF A BRAND
Since 1983, many moments have marked the history of Sonus faber; the launch of the Olympica Collection 6 years ago is one of them. One of the first lines presented as a complete family of products, but above all, the very first one to feature original drivers, entirely designed in Sonus faber.
Olympica Nova is the second generation of the iconic family of 2013, improved in its form and substance, imbued with the timeless values that inspired us in creating the original line.
The result is a new Collection that embraces the most advanced technologies that already enhance our most prestigious creations.

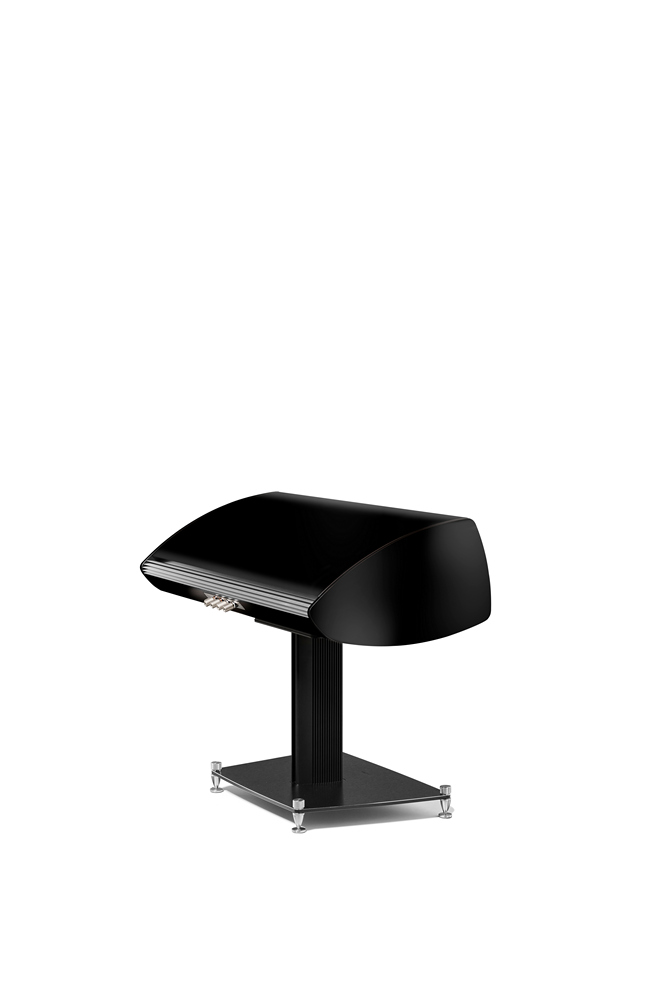

ORGANIC SHAPE
The lack of flat and parallel walls improves enclosure performance and maintains the typical asymmetrical Lute shape of first generation Olympica.
The asymmetrical shape of the cabinet is an original design concept that allows versatile positioning of the speakers to tune the bass response in any room.
Inspired by nature, the lines follow the flow of a circular spiral motion, achieving a more organic cabinet structure.
No longer just a functional element added to handle airflow, the reflex duct is now fully integrated into the cabinet, further improving the speed and transparency of sound.
FEATURES
For natural sound performance, we designed Olympica Nova Center II
as the perfect complement to the largest speakers of the Collection.
REFLEX PORT
The solid piece of extruded aluminum that complete the Stealth Ultraflex™ system, an extremely low-turbulence porting system, is inherited from Homage Tradition models. Favoring the profile of sea waves, the structure facilitates airflow through the duct while controlling its speed and reducing the distortion-causing turbulence.
CROSSOVER
The crossover network implements Paracross Topology™, making the crossover less sensitive to radio-frequency interference, improving transient response and lowering noise floor. The filtering topology features new exclusive Clarity Cap capacitors, customized for Sonus faber.
WOOD
Just like the rest of the cabinet, the front baffle is made in the walnut or wengè hand-finished natural wood. Our designers wished to pay homage to the most representative material of Sonus faber, making it even more of a standard-bearer.
STRUCTURAL RIGIDITY
Similar to the Homage Tradition and Reference Collections, the walls are made with eight layers of bended wood, providing the cabinet with extreme rigidity. Inside the cabinet, carefully placed structural ribs are used as reinforcement to reduce vibration and to handle the overall power of the transducers movement.
TWEETER
The 28 mm silk soft dome tweeter features the DAD™ technology (Damped Apex Dome™) that enhances the smoothness and extension in the high frequency by applying local dampening to the apex typically responsible for anti-phase behavior of soft dome diaphragms. The DAD™ structure has been totally redesigned; a solid piece of aluminum die-cast includes both arch and ring on the dome to increase the strength and accuracy of the system.
NATURAL LEATHER
The natural leather embellishes the tweeter and the pair of midranges and enriches the aesthetic rings around the woofers. Genuine Italian leather that, as per our brand’s tradition, is applied by hand in the production department in Vicenza.
MIDRANGE
The midrange is completely designed and developed in Sonus faber laboratories. Its cone is realized cooperating with Kurtmueller and represents the most advanced stage of the traditional Sonus faber recipe: an air dried non pressed blend of cellulose pulp and other natural fibers: kapok and kenaf. This natural drying process gives the diaphragm a slightly rough surface of varying density and contributes damping and distributing cone resonances while guaranteeing a natural sound, increased transparency and details. The precious phase-plug enhances the mid-hi frequencies emission while proudly stating that the Olympica Nova collection is “Made in Italy.
WOOFER
The woofer cone has been developed in cooperation with Kurtmueller and it’s based on an exclusive sandwich construction technique: two external layers of cellulose pulp are combined with a layer of hi-tech syntactic foam in between. This low mass and hi rigidity cone construction allows for a perfect reproduction of the low frequencies while guaranteeing absolute tonal coherence with the midrange. This transducer is assembled in Italy.

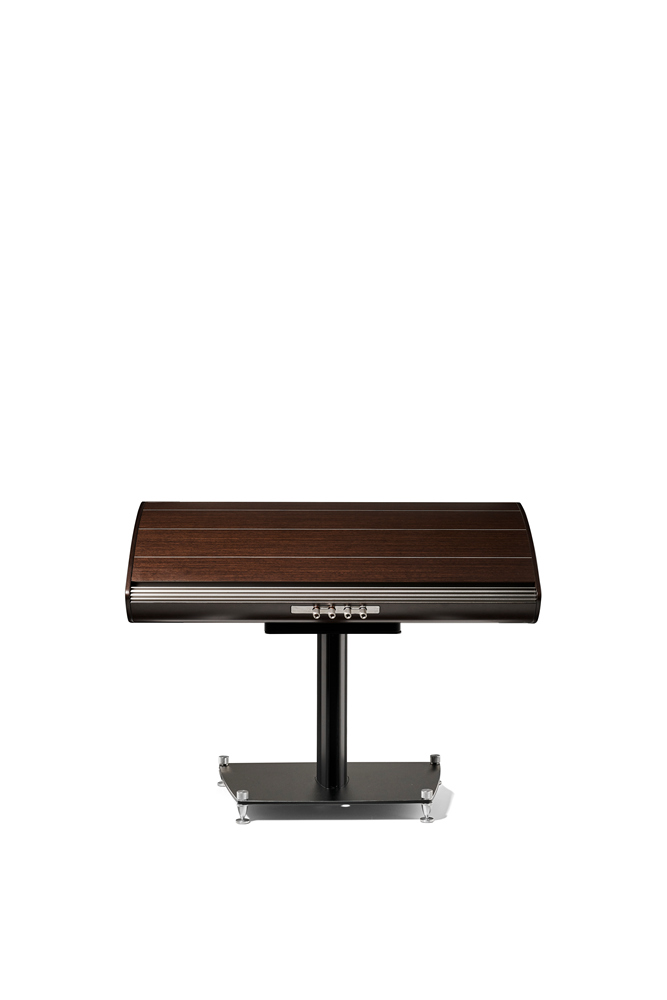

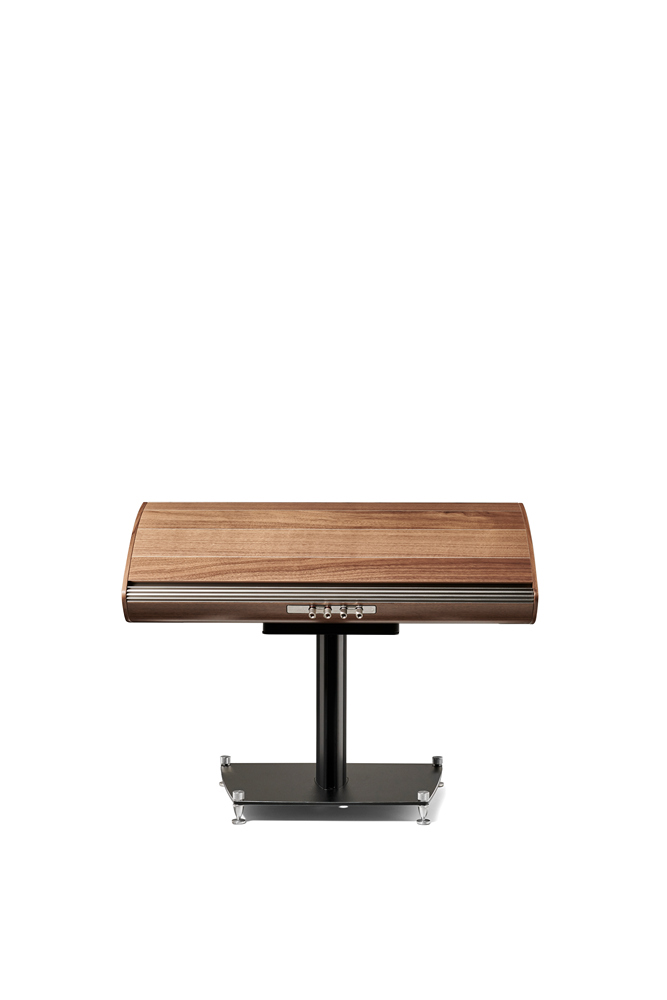

SUPPORTS
The center channels have been designed with new custom Aluminum extruded stands that feature a cable guide, to hide power cable in the column.
TECHNICAL SPECIFICATIONS
SYSTEM
3 way, full para-aperiodic vented box “Stealth Ultraflex”, stand mount loudspeaker system
LOUDSPEAKERS
Tw: H28 XTR3, Neodymium “cup design” motor system with DAD™, Ø 28 mm
Md: 2 x M15 XTR2-08, CCAW wire on a “eddy current free” voice coil, Ø 150 mm
W: 2 x W18XTR2-08, Ø 180 mm
CROSSOVER
250 Hz – 1.550 Hz
FREQUENCY RESPONSE
35 Hz – 35.000 Hz
SENSITIVITY
90 dB SPL (2.83V/1 m)
NOMINAL IMPEDANCE
4 ohm
SUGGESTED AMPLIFIER POWER OUTPUT
50 W – 300 W, without clipping
DIMENSIONS (HXWXD)
278,1 (719,9 stand included) x 866 x 459,7 mm
11 (28.3 stand included) x 34 x 18 in
