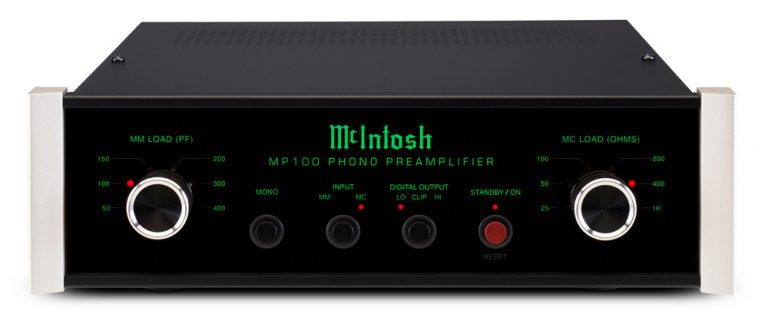

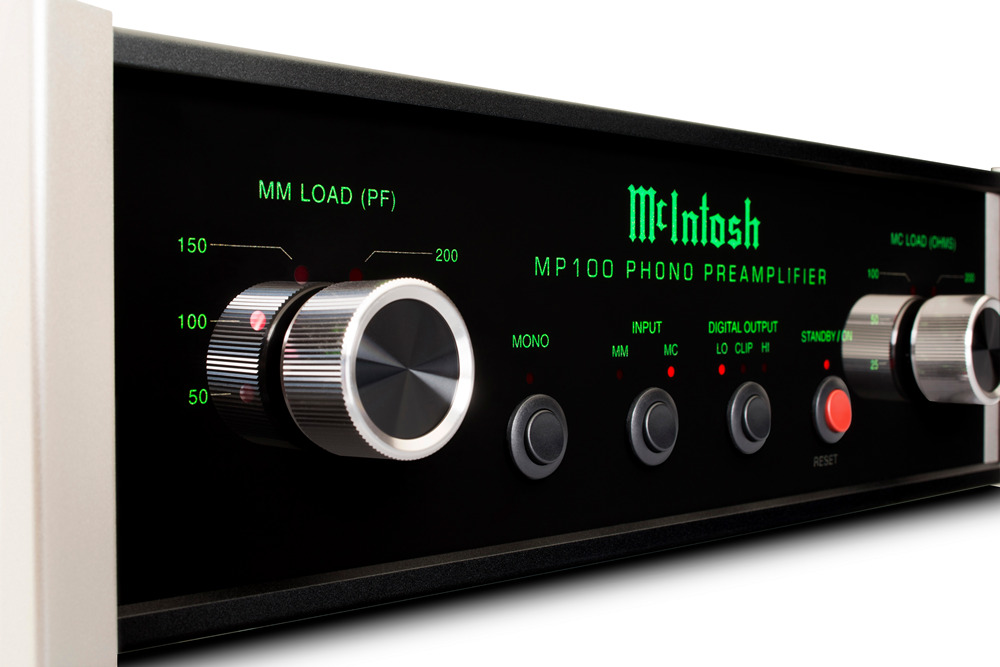

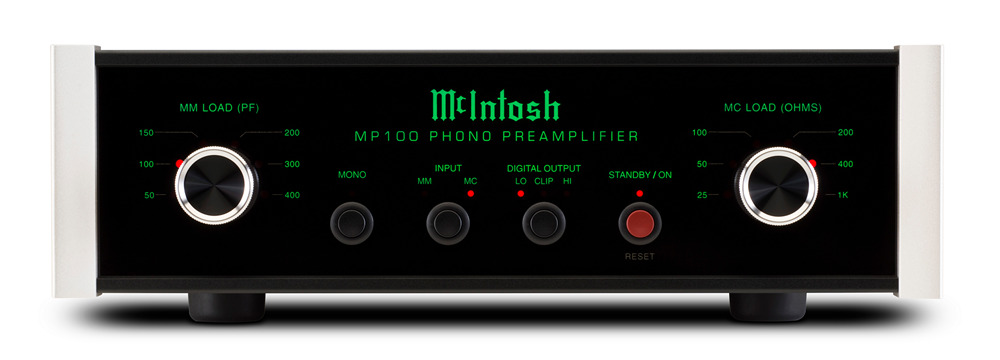

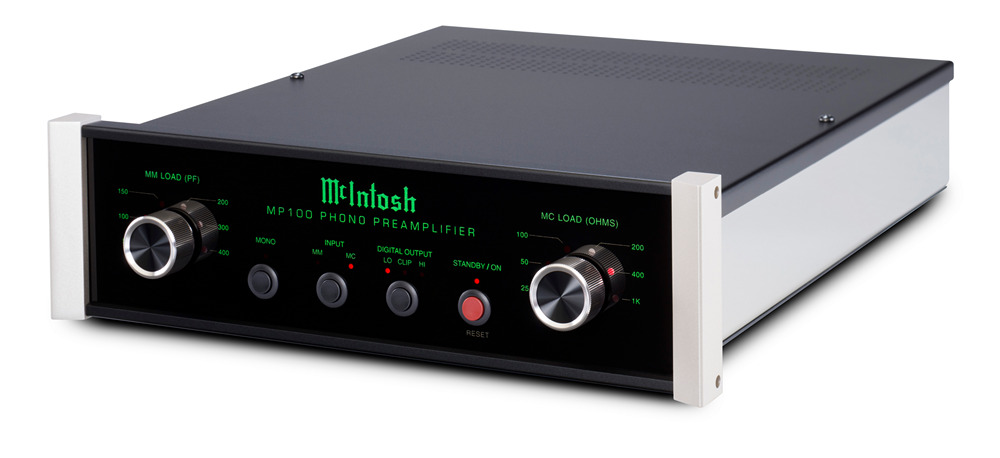

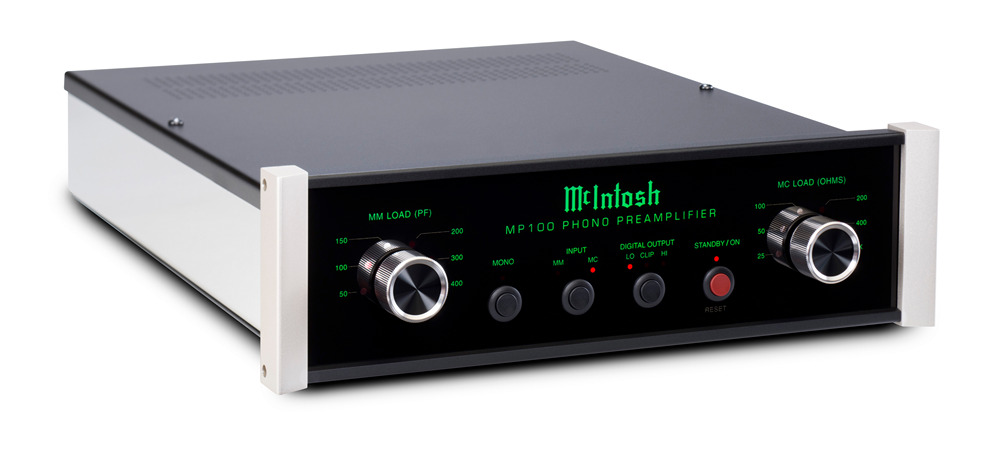

MP100

• Moving Coil & Moving Magnet inputs
• Analog outputs + USB for ripping to computer

The MP100 is the first dedicated phono preamplifier from McIntosh and is designed to help both new and experienced vinyl lovers get the most fidelity, performance and – most importantly – enjoyment from their albums.

ELECTRONIC SPECIFICATIONS

• Total Harmonic Distortion

  0.005%

• Frequency Response

  ±0.3dB from 20Hz to 20,000Hz

• Maximum Volts Out (Balanced / Unbalanced)

  16/8 V RMS

• Input Impedance

  Moving Coil: 25, 50, 100, 200, 400 or 1k Ohms; 470pF
  Moving Magnet: 47k Ohms; 50, 100, 150, 200, 300 or 400pF

• Phono Voltage Gain

  Moving Coil: 60dB
  Moving Magnet: 40dB

• Signal To Noise Ratio

  Moving Coil: 78dB
  Moving Magnet: 80dB

• Maximum Input Signal (Moving Coil)

  8mV

• Maximum Input Signal (Moving Magnet)

  80mV

• Maximum Input Signal (Balanced)

  N/A

• Maximum Input Signal (Unbalanced)

  N/A

• Sensitivity Phono (Moving Coil)

  1mV

• Sensitivity Phono (Moving Magnet)

  10mV

• Sensitivity (Balanced)

  N/A

• Sensitivity (Unbalanced)

  N/A

• Rated Output

  2V Balanced
  1V Unbalanced

• Output Impedance

  200 Ohms Balanced
  100 Ohms Unbalanced

• Phono Equalization Curves

  1: RIAA

• Noise Filters

  0

• Phono Profiles

  0

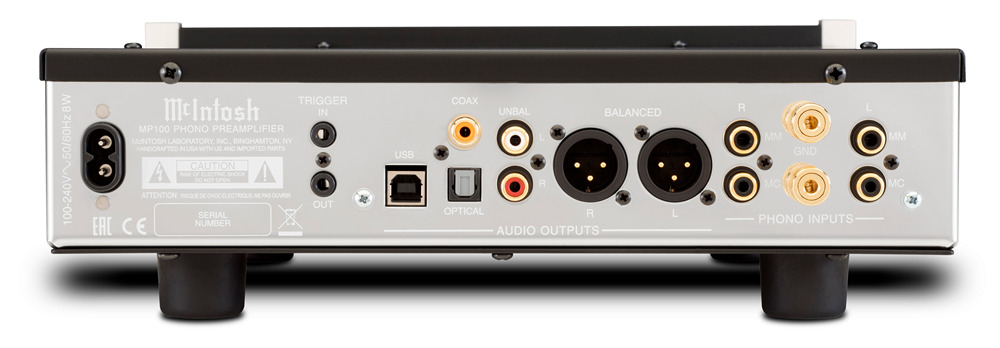

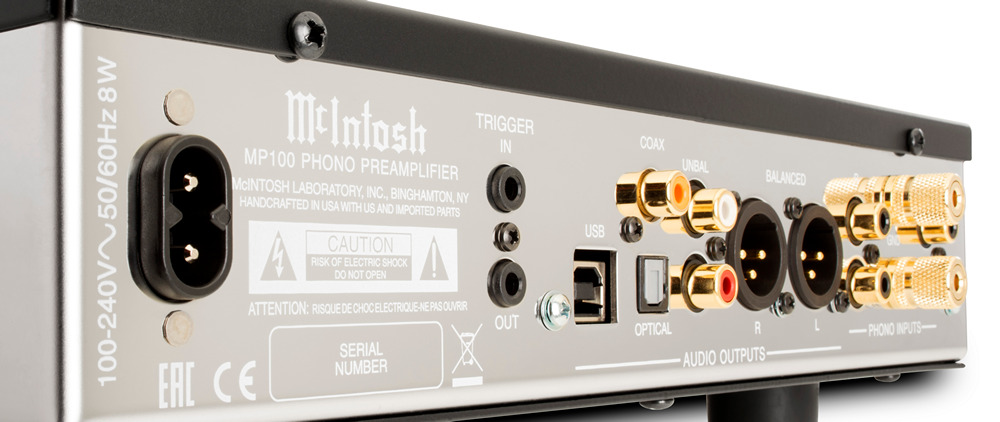

CONNECTIVITY

• Phono Input Moving Coil

  1 (adjustable)

• Phono Input Moving Magnet

  1 (adjustable)

• Phono Input Universal

  0

• Balanced Line Input

  0

• Unbalanced Line Input

  0

• Balanced Fixed Output

  1 Stereo

• Unbalanced Fixed Output

  1 Stereo

• Digital Coaxial Output

  1

• Digital Optical Output

  1

• Digital USB Audio Output

  1

• Unbalanced Analog Connector Type

  Standard

CONTROL

• Power Control Input

  1

• Power Control Output

  1

DIGITAL AUDIO SPECIFICATIONS

• Digital Output Sample Rate

  Optical: PCM – 24-bit/96kHz
  Coaxial: PCM – 24-bit/96kHz
  USB: PCM – 24-bit/96kHz

GENERAL SPECIFICATIONS

• Multi-Chassis or Single

  Single

• Output Meters

  No

• Vacuum Tube or Solid State

  Solid State

• Power Consumption (On)

  8 Watts

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  11.5" (29.2cm) x 3.78125" (9.6cm) x 16.75" (42.5cm)

• Unit Weight

  8.6 lbs (3.9 kg)

• Shipping Weight

  9.6 lbs (4.4 kg)
