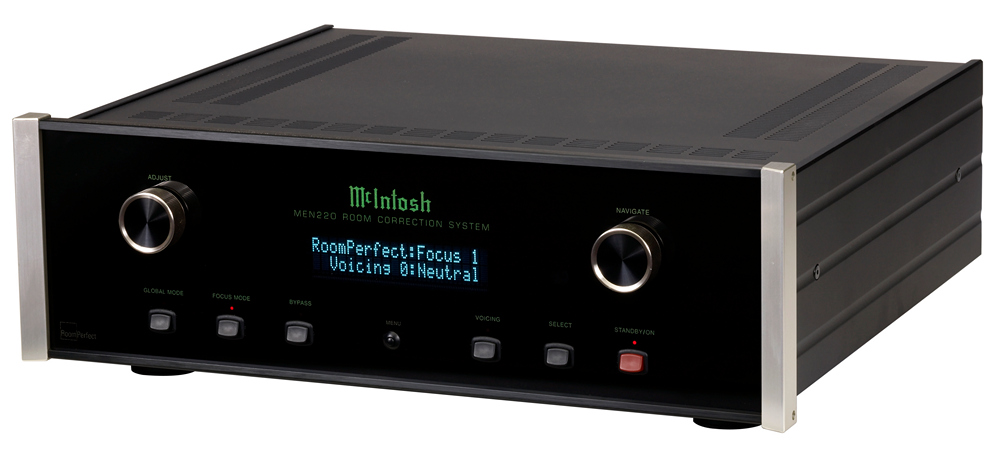

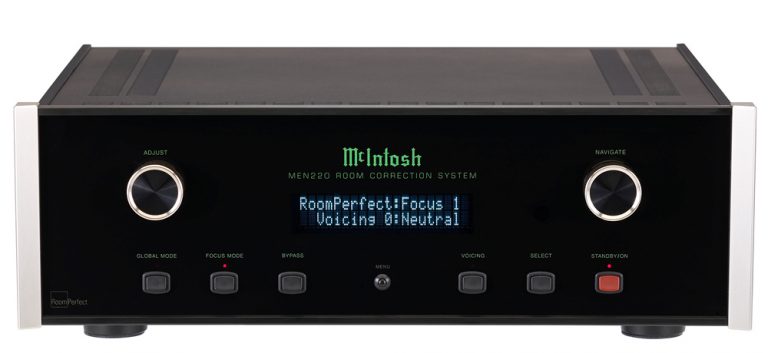

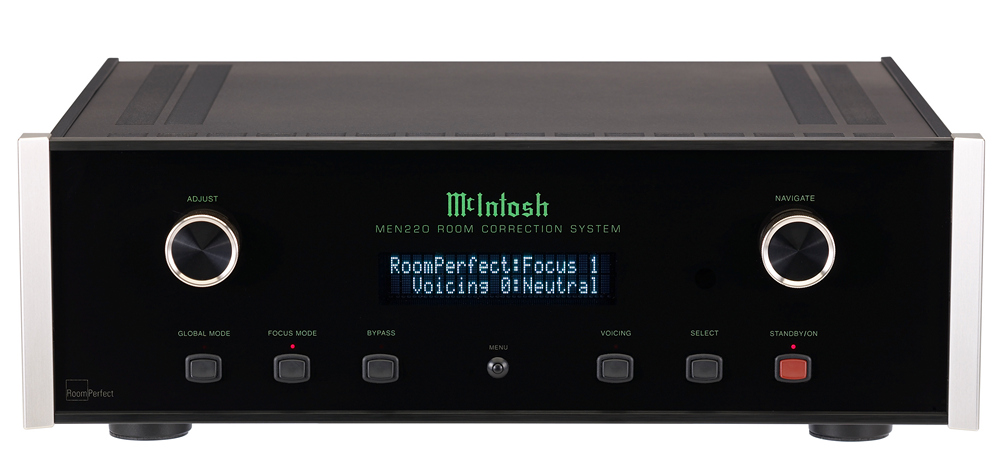

MEN220

• Works on 1/12 Octaves
• 2-Way Electronic Crossover for Bi-amping

The MEN220 delivers a potent suite of Room Correction, Custom-EQ and 2-Way Crossover capabilities in one easy-to-use stereo component. While any single feature of the MEN220 has the power to optimize the sonic characteristics of the highest quality audio systems, combining all the features can reveal a level of clarity and resolution unattainable by any other means.

"I have never heard my speakers sound so wonderful!" – Michael (customer review)

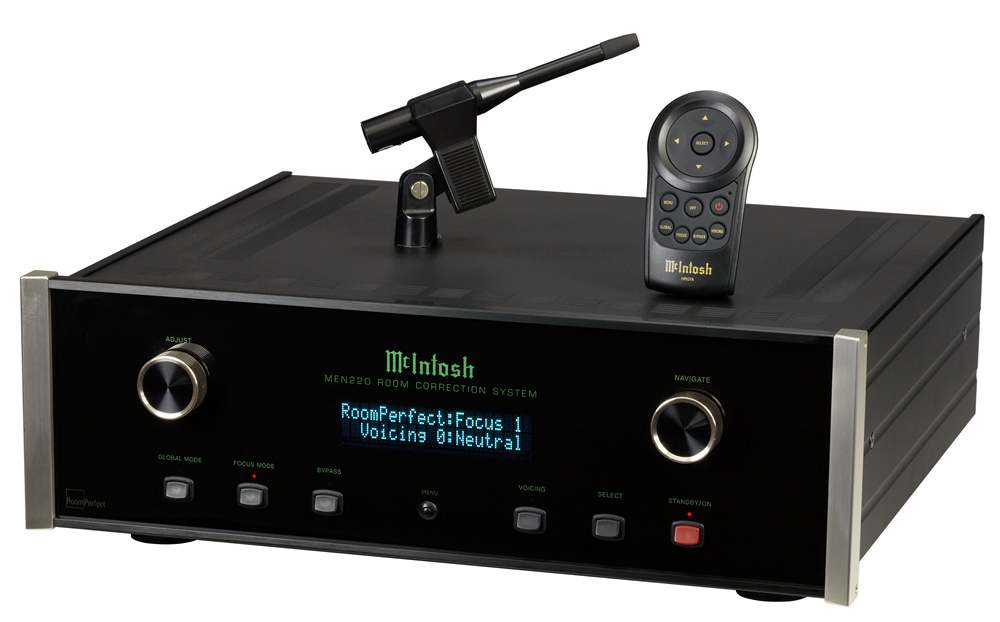

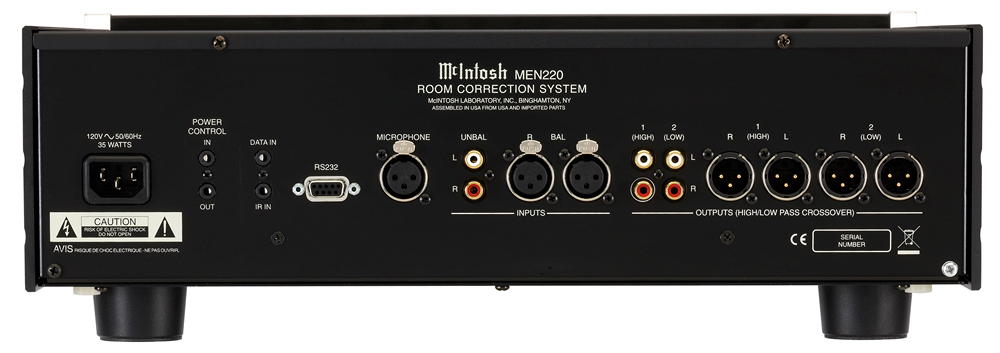

Full system control and PC link are provided via RS232 while McIntosh data, power control and IR inputs offer additional remote control flexibility. Both single-ended and balanced connections are supported; a hand-held, IR remote control is included.

ELECTRONIC SPECIFICATIONS

UNLESS NOTED, THE FOLLOWING WERE TAKEN WITH ROOMPERFECT SET TO BYPASS MODE AND VOICING MODE SET TO NEUTRAL.

• Frequency Response

  +0, -0.5dB from 20Hz to 20,000Hz

• Total Harmonic Distortion

  0.002% from 20Hz to 20,000Hz

• Maximum Input Voltage

  4.5V Unbalanced and Balanced (Preamp-Power Amp)
  2.25V Unbalanced and Balanced (Processor Loop)

• Maximum Output Voltage

  4.5V Unbalanced and Balanced (Preamp-Power Amp)
  2.25V Unbalanced and Balanced (Processor Loop)

• Signal To Noise Ratio (A-Weighted)

  100dB

• Input Impedance

  10K ohms Unbalanced and Balanced

• Voltage Gain

  0dB

• Output Impedance

  50 ohms

• Crossover Filter Types, Order and Slope

  Butterworth, 1st order, 6 dB/octave
  Butterworth, 2nd order, 12 dB/octave
  Butterworth, 4th order, 24 dB/octave
  Linkwitz-Riley, 2nd order, 12 dB/octave
  Linkwitz-Riley, 4th order, 24 dB/octave
  Linkwitz-Riley, 8th order, 48 dB/octave

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  17-1/2" (44.45cm) x 6" (15.24cm) x 18" (45.72cm) (including front panel, knobs and cables)

• Unit Weight

  25.5 lbs (11.6 kg)

• Shipping Weight

  41.9 lbs (19 kg)
