MCT500

2-Channel SACD/CD Transport

מידע נוסף

מותג

Mcintosh

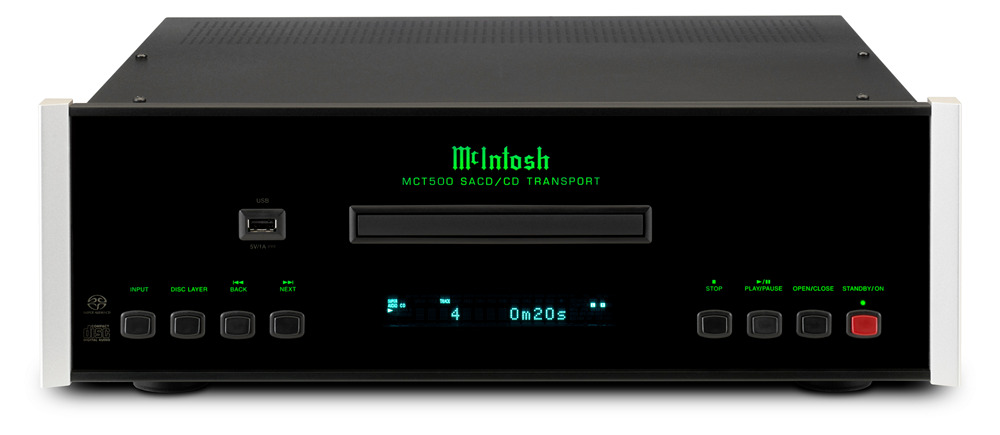

MCT500 Front Top hi res

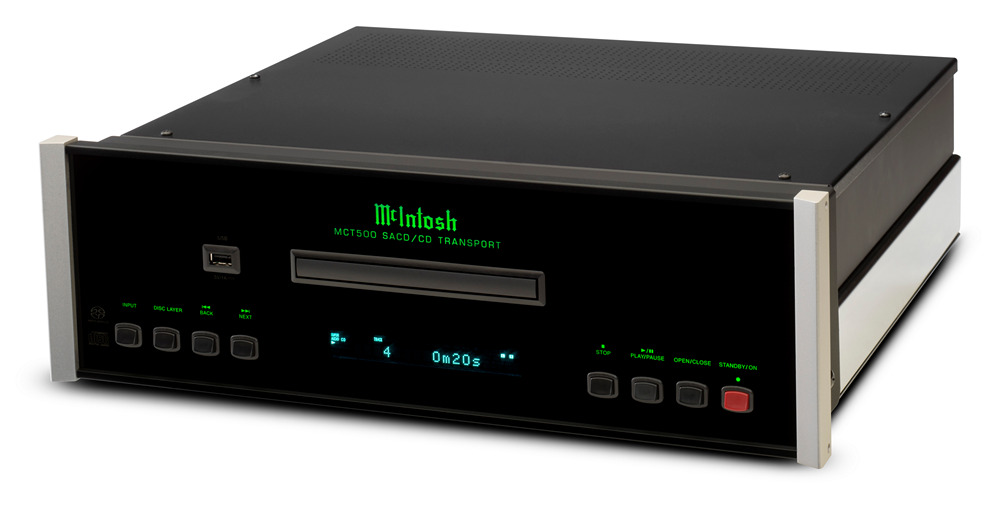

MCT500 Angle hi res

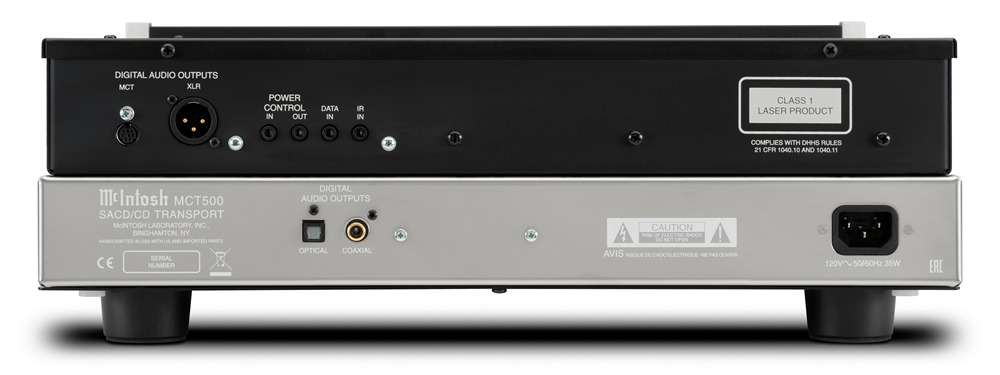

MCT500 Back hi res

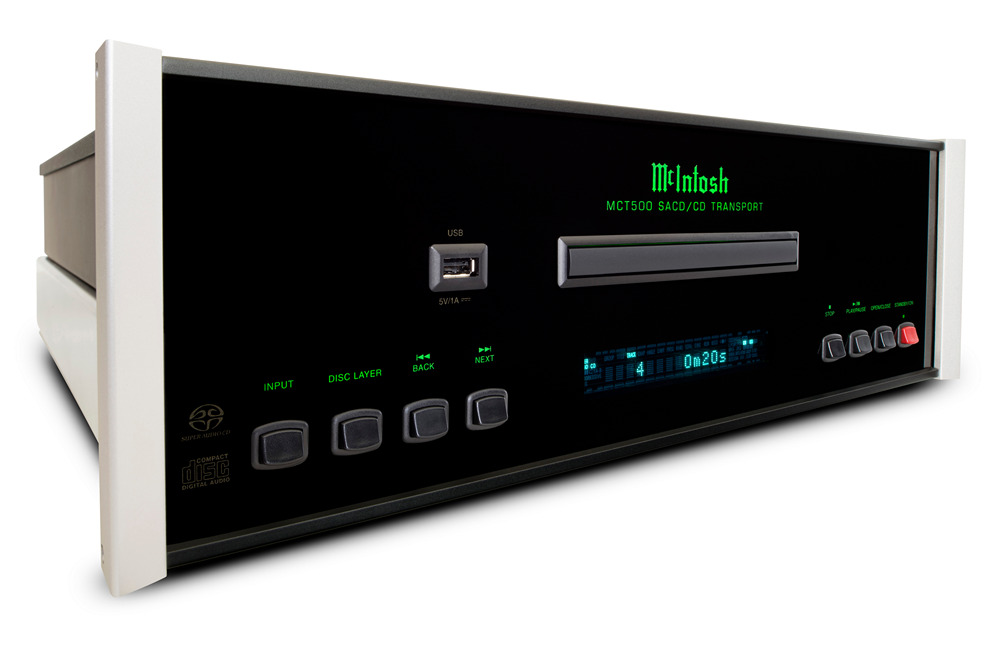

MCT500 Low Angle hi res

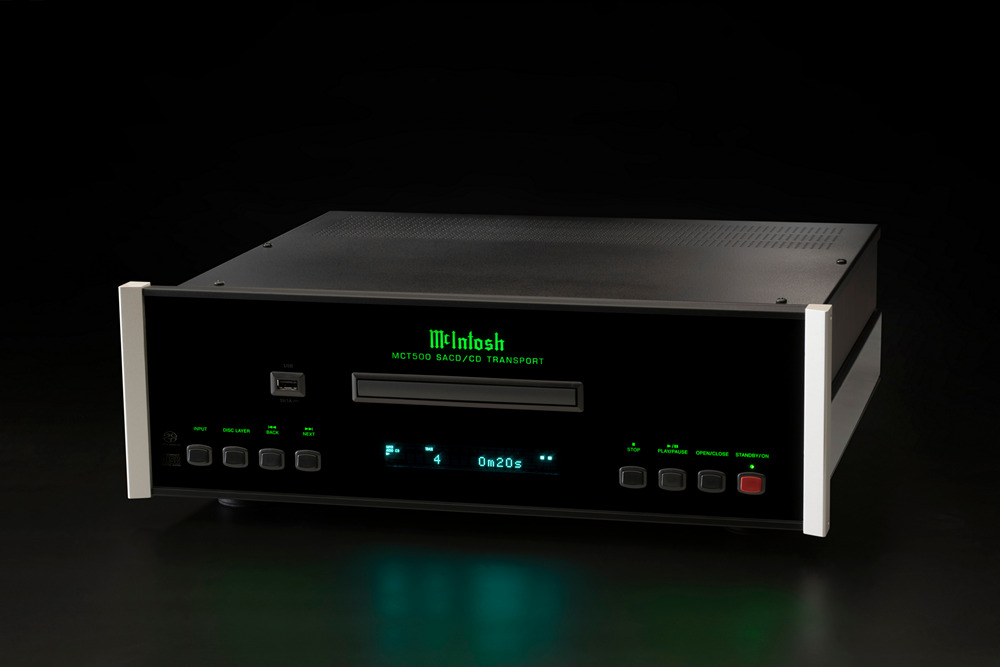

MCT500 Front Top background hi res
MCT500 Front Top hi res
MCT500 Angle hi res
MCT500 Back hi res
MCT500 Low Angle hi res
MCT500 Front Top background hi res
Full Screen

מידות

  • Plays CD/DVD Data Discs; USB flash drives
  • Balanced, coax, optical, MCT outputs



Be transported into your music with the MCT500 SACD/CD Transport.



The MCT500 is a digital only unit and features 4 digital outputs: industry standard balanced, coax and optical outputs plus our exclusive MCT connector. To enjoy your CDs, it can be paired with any product that has standard digital inputs and a digital-to-analog convertor (DAC). This includes select McIntosh home theater processors, integrated amplifiers and preamplifiers.



For SACD playback, the MCT500’s proprietary MCT output needs to be connected (via the included cable) to a McIntosh product with an MCT input. This includes the D1100, C53, C2700, C49 and D150 preamplifiers, MA9500, MA8950, MA7200 or MA5300 integrated amplifiers or MAC7200 receiver. When the MCT500 is connected to one of these devices, a secure digital connection is created, allowing for the playback of the high definition audio found on SACDs. Regular CDs can also be played over the MCT connection.



All common disc types can be played on the MCT500, including SACD, CD, CD-R/RW and DVD-R. A twin laser optical pickup assures optimal disc reading. A USB input is conveniently located on the front panel for easy access. In addition to store bought CDs and SACDs, popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA can be played from user generated CD or DVD Data Discs and USB flash drives.1



Disc handling is smooth and quiet thanks to an advanced disc transport with a precision die-cast aluminum tray. An advanced digital servo provides fast, quiet and accurate operation. A disc’s audio data is read at twice the normal rate insuring better disc tracking and error correction processing.



Integration with other McIntosh system components is achieved via the Power Control and data ports. The MCT500 is wrapped in classic McIntosh styling with a polished stainless steel chassis, black glass front panel, illuminated logo and aluminum end caps.







AUDIO SPECIFICATIONS

  • Number of Channels
    2
  • Fixed Output Level
    N/A
  • Variable Output Level
    N/A
  • Output Impedance
    N/A
  • Frequency Response
    N/A
  • Signal To Noise Ratio
    N/A
  • Dynamic Range
    N/A
  • Total Harmonic Distortion
    N/A
  • Channel Separation
    N/A
  • Headphone Output Impedance
    N/A

DIGITAL AUDIO SPECIFICATIONS

  • Digital-to-Analog Converter (DAC) Type
    N/A
  • Coaxial Sample Rate
    N/A
  • Optical Sample Rate
    N/A
  • USB Sample Rate
    N/A
  • Digital Coaxial Input
    N/A
  • Digital Optical Input
    N/A
  • Digital Output Sample Rate
    Coaxial: Up to 24-Bit/192kHz
    Optical: Up to 24-Bit/192kHz
    XLR: Up to 24-Bit/192kHz
    MCT: Up to 24-bit/96kHz (CD); DSD128 (SACD and Data DVD)
  • Digital Optical Output
    -15dbm to -21dbm
  • Digital Coaxial Output
    0.5V p-p/75 ohms
  • Digital Output Jitter
    ≤ 32ns with 1kHz test tone
  • Digital XLR Output
    5V p-p/150 ohms
  • Digital MCT Output
    3V @110 ohms

CONNECTIVITY

  • Balanced Fixed Output
    0
  • Unbalanced Fixed Output
    0
  • Balanced Variable Output
    0
  • Unbalanced Variable Output
    0
  • Digital Coaxial Input
    0
  • Digital MCT Input
    0
  • Digital Optical Input
    0
  • Digital USB Input
    1 (front)
  • Digital USB Input Type
    Type A
  • Digital Coaxial Output
    1
  • Digital MCT Output
    1
  • Digital Optical Output
    1
  • Digital XLR Output
    1
  • Headphone Output
    0

CONTROL

  • Power Control Input
    1
  • Power Control Output
    1
  • Rear Panel Data Input
    1
  • Rear Panel IR Sensor Input
    1
  • RS232 Control Input
    0

GENERAL SPECIFICATIONS

  • Disc Formats
    SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA
  • Disc Capacity
    1
  • Laser Type
    Twin Beam
  • Laser Beam Wavelength
    650nm (SACD)
    790nm (CD)
  • Laser Power
    CLASS IIa/CLASS I
  • Standby Power Requirement
    <0.5 watt

WEIGHTS & DIMENSIONS

  • Unit Dimensions (W x H x D)
    17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).
  • Unit Weight
    26 lbs (11.8 kg)
  • Shipping Weight
    40.5 lbs (18.4 kg)
