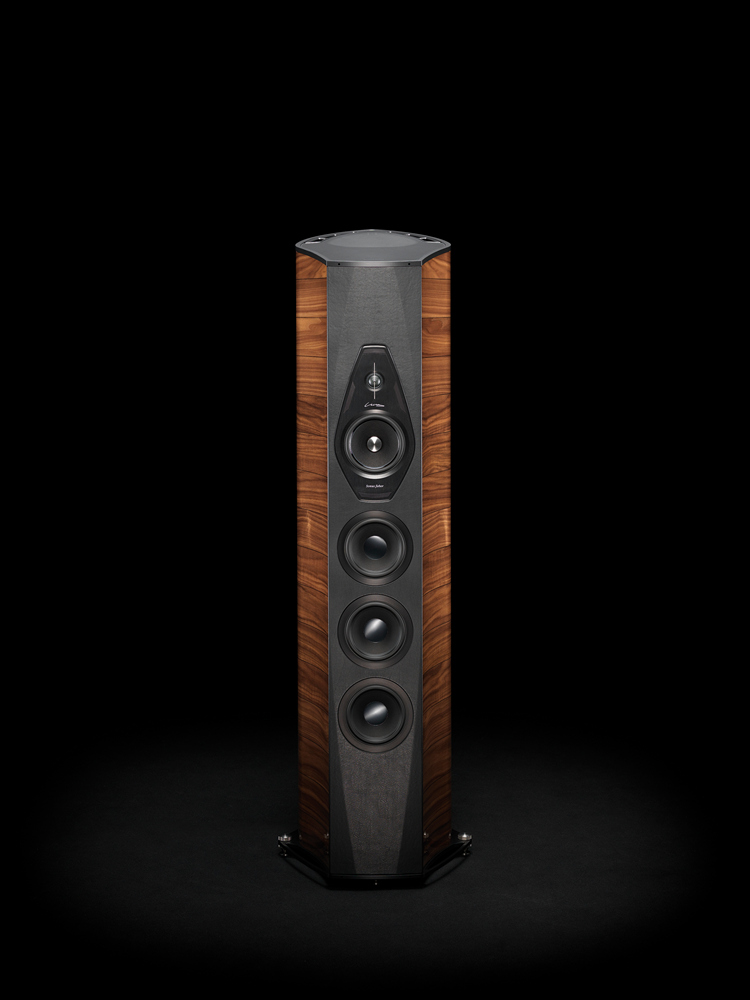

LILIUM
מידע נוסף
| מותג | Sonus Faber |
|---|
מידות
- גובה 160
- רוחב 49.1
- עומק 70.5
THE DUALITY OF SOUND

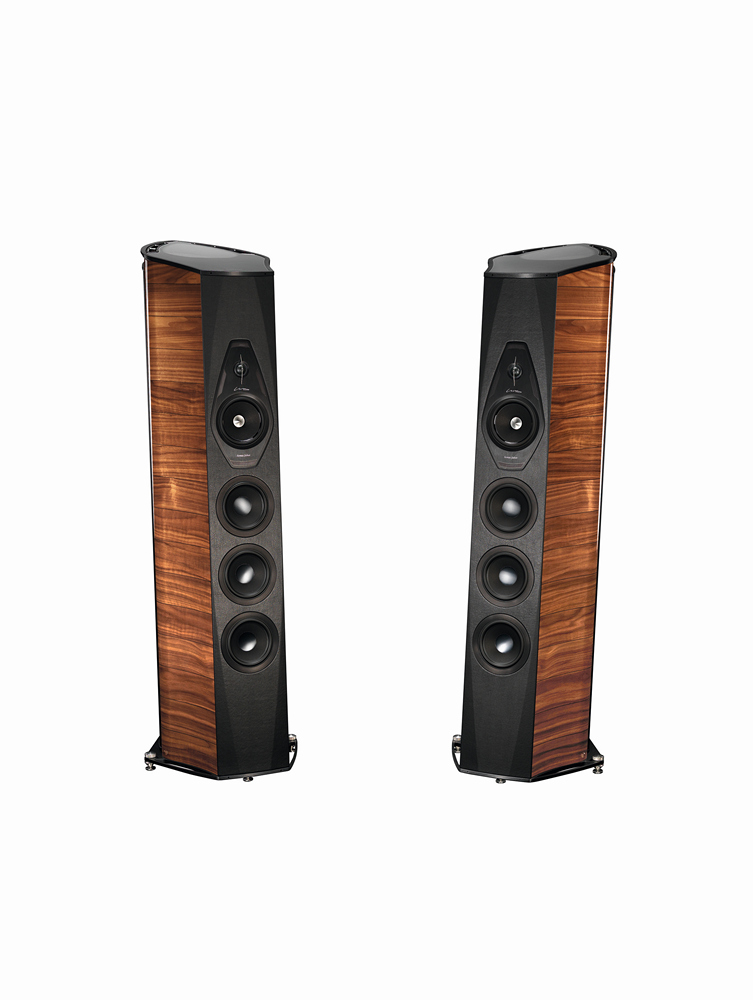

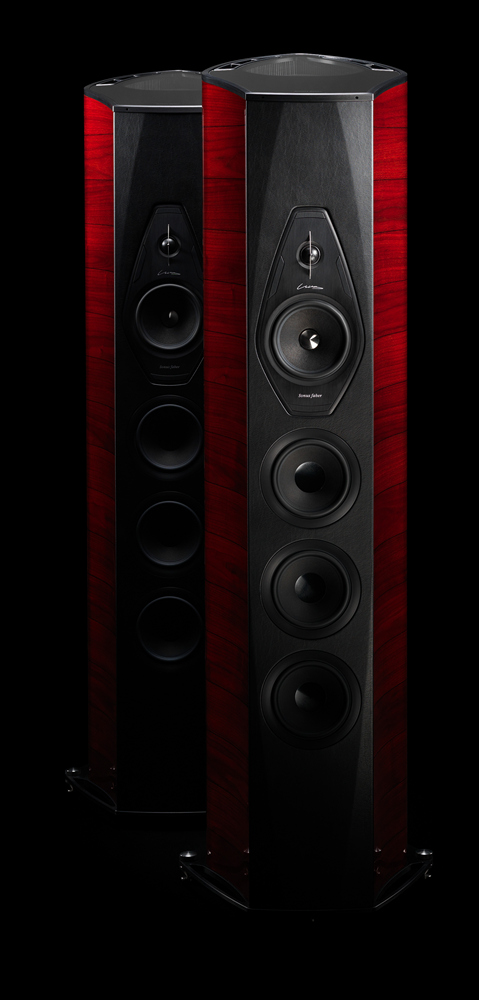

LILIUM
Harmony of differences and merger of shapes
Strength and grace. Dynamics and melody. Full and empty. Sweetness and impetuosity.
Strong contrasts, seemingly opposites, that coexist in Music.
THE SONUS FABER SIGNATURE STYLE

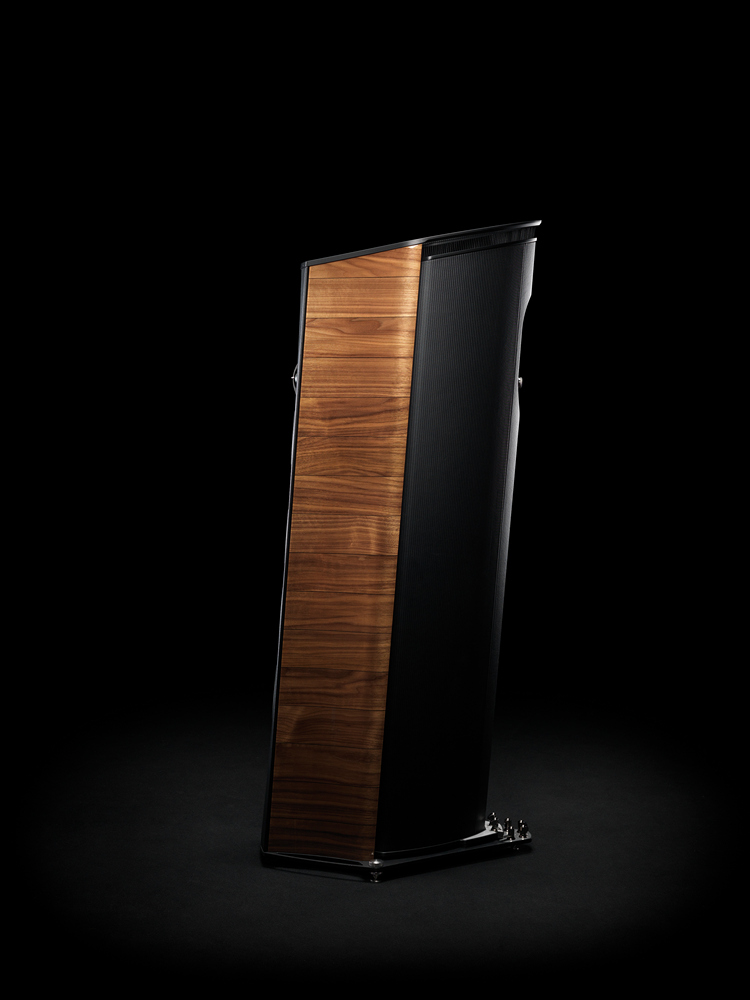

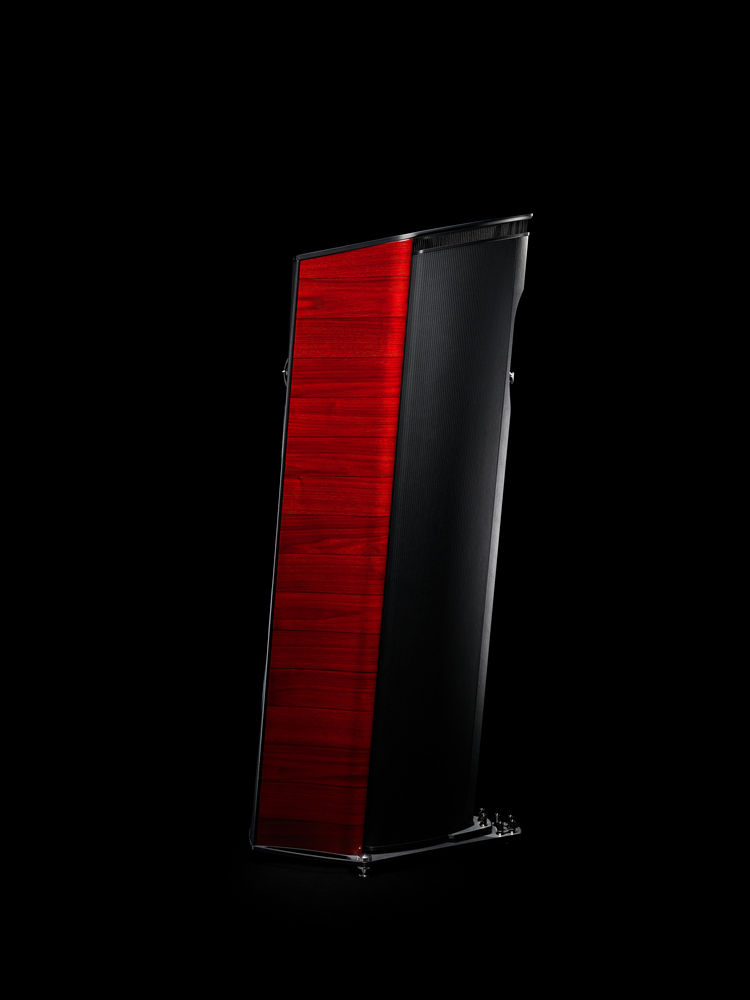

The idea of the dual curvature of the cabinet sides, firstly conceptualized with the Sonus faber and evolved in Aida, is here enhanced thanks to a new design that reinvents the "lyra" outline merging two separate identities that cooperate inside the same shape.
FROM THE SONUS FABER ONWARDS
Ideas and patents developed within the Sonus faber, at first, and Aida, later, are integrated into this extraordinary loudspeaker system. The driver units technology, designed and developed by Sonus faber, sets a step forward in the technological innovation.
FEATURES

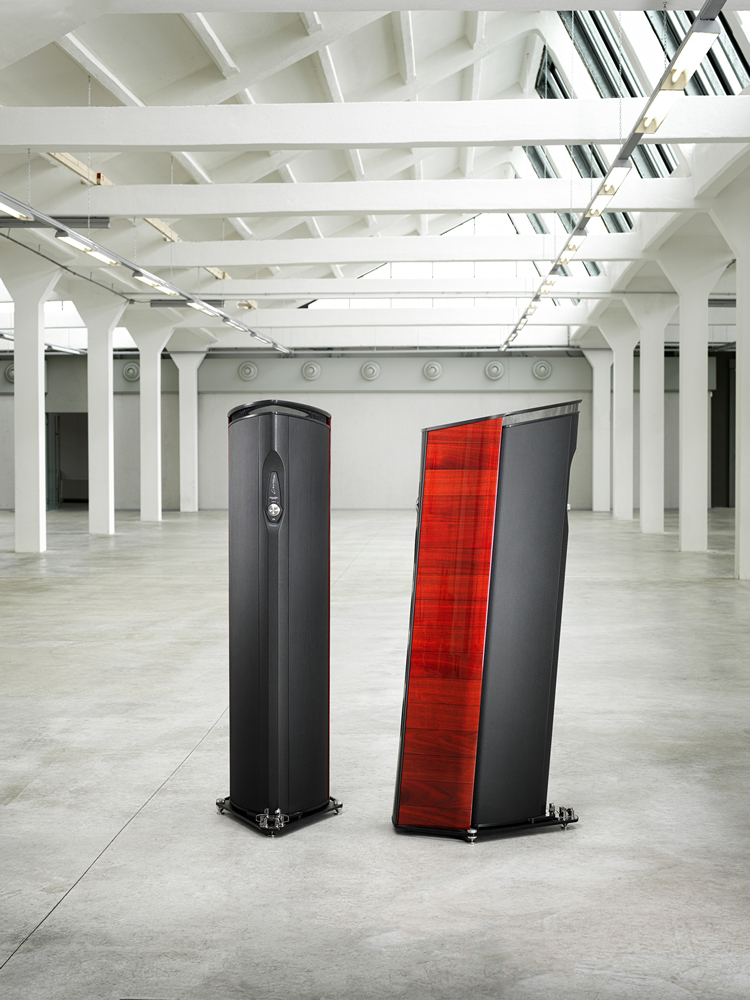

Lilium appearance reveals its essential duality, characterized by two separates acoustic chambers.
The challenge of this projects is to achieve a new unique synthesis starting from an ontological division.
DEEP LOW CONTROL

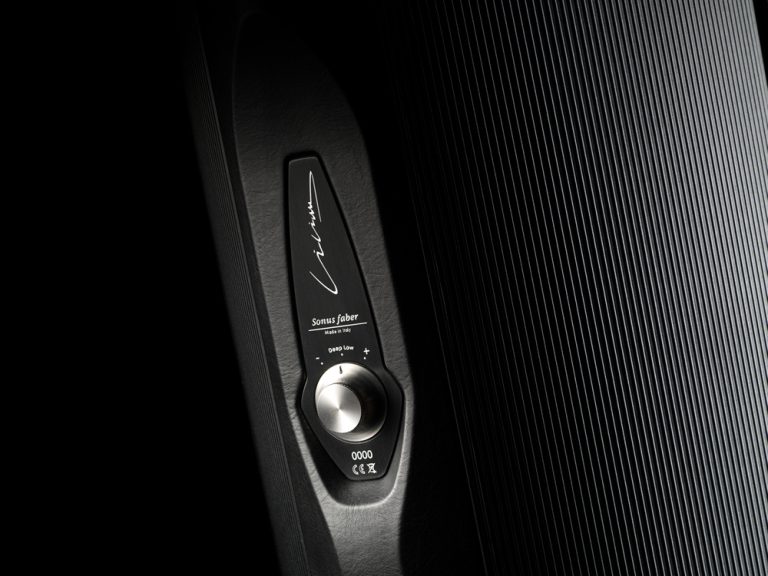

The powerful infra-woofer SW26XT-08, featuring a solid structure of soaked cellulose, works within the P.Z.I. (Pressure Zone Interface) acoustic conditions, a "ground effect" configuration that guarantees the best possible interface between the infra-low frequencies and the environment. Its output level can be adjusted through the "Deep Low Control", for a perfect integration in the environment.
-TUNED MASS DAMPER™

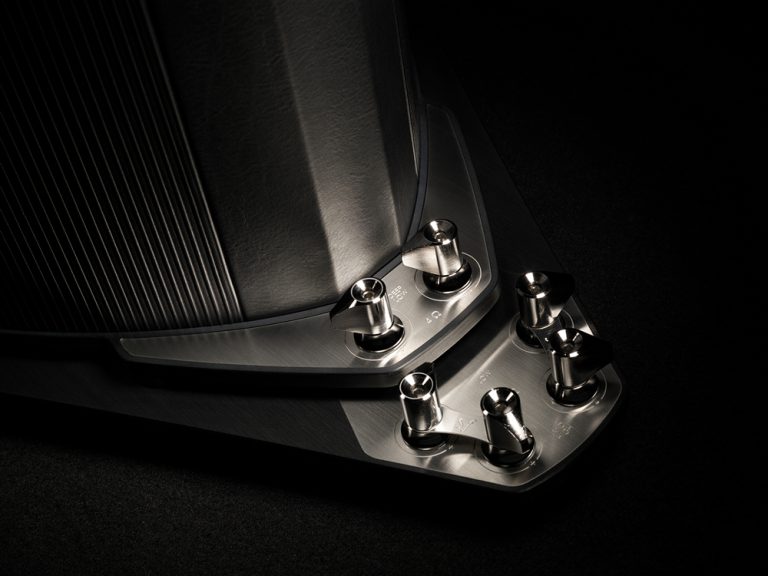

BINDING POST
The terminal plates for connections allow tri-amplification and are located on two separate plates, to further underline the total independence of the front and rear cabinets.

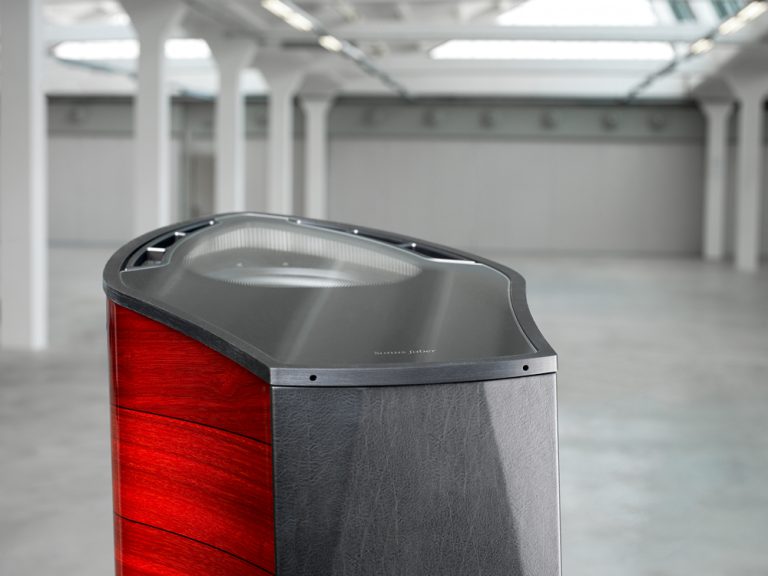

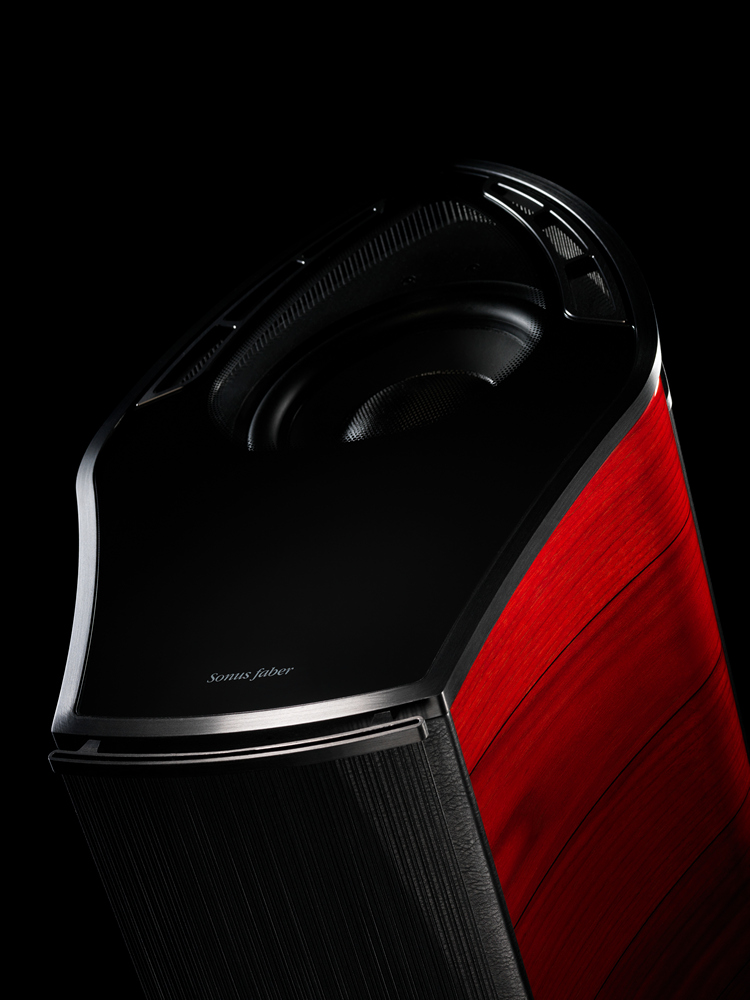

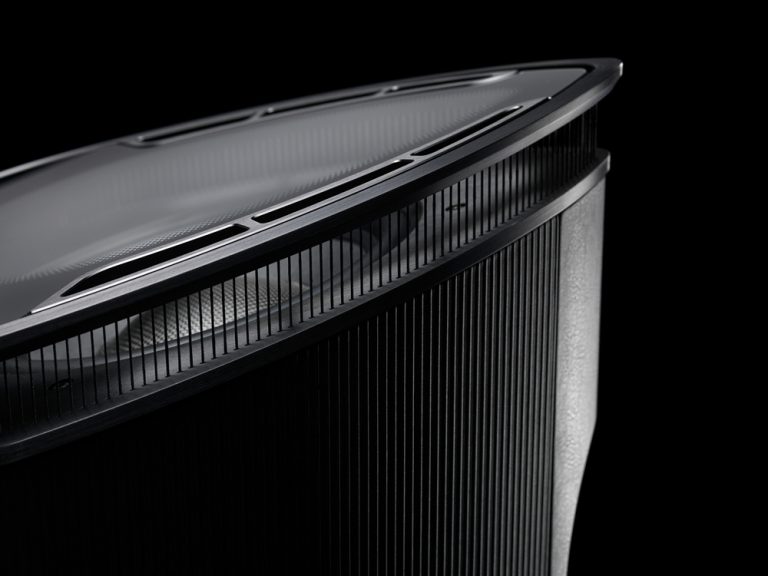

THE TOP

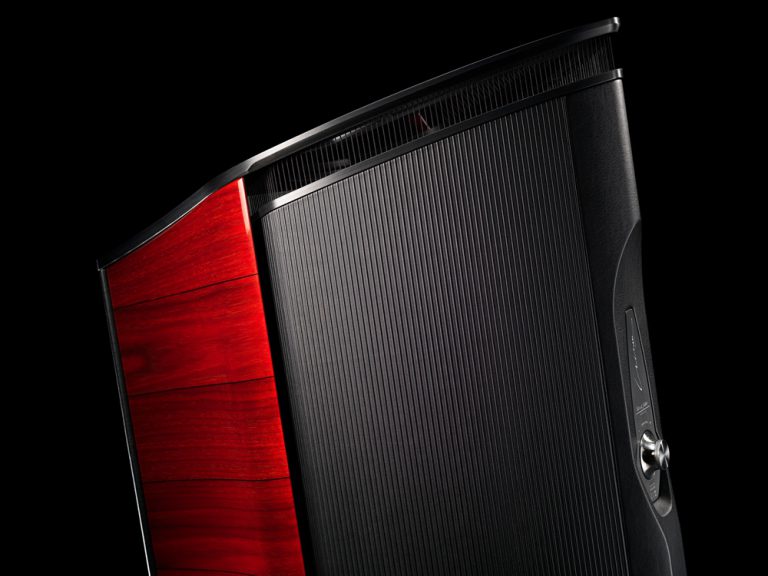

Made of tempered glass, the plate covers the Lilium’s top with the shape of the lily that gives the inspiration for the speaker’s name. You can see the passive radiator moving through the transparency, while infra-low frequencies vibrations invade the pavement, leaving the sound free to spread in the air.
TECHNICAL SPECIFICATIONS

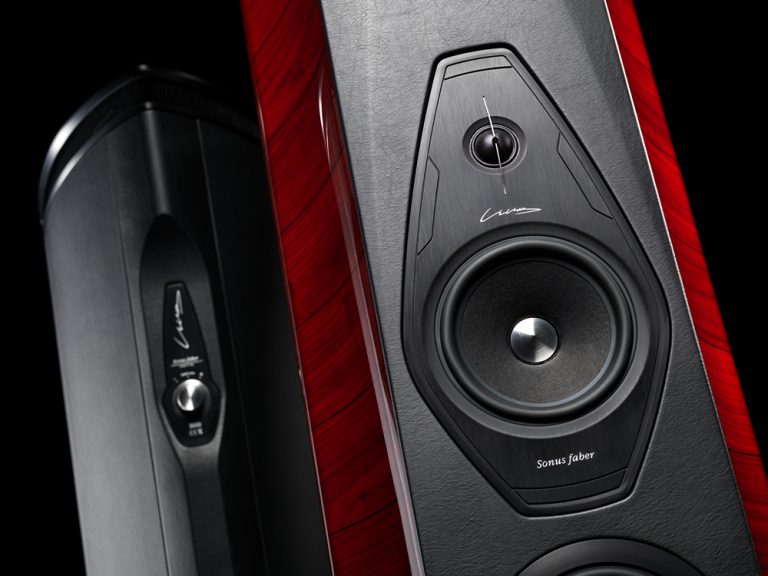

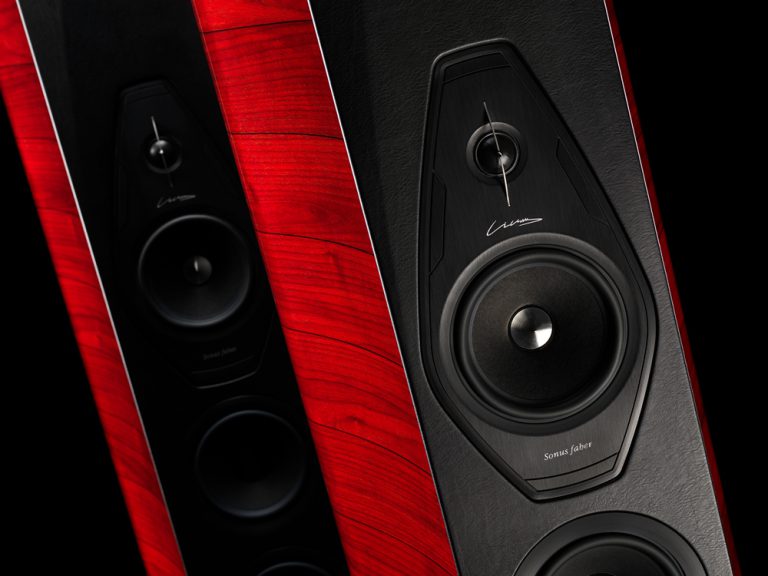

LOUDSPEAKERS
Tw: H28 XTR-04 DAD Arrow Point, Ø 28 mm
Md: M18 XTR-04 Neodymium Magnet System, Ø 180 mm
W: 3 x W18XTR-16, Ø 180 mm
Sw: SW26 XT-08, Ø 260 mm
CROSSOVER
80Hz – 250Hz – 2,500Hz
FREQUENCY RESPONSE
20 Hz – 35.000 Hz, Stealth reflex included
SENSITIVITY
92 db SPL (2.83V/1 m)
