HISTORY, REMADE

IL CREMONESE

Tribute to both history and innovation

True in the history of Italian violin making and to its own innovative spirit,
Sonus faber pays homage to the great Antonio Stradivari.
As the Stradivari’s instrument, even Il Cremonese is
the result of scientific researches and deep passion.

THE STRADIVARI'S VIOLIN

Inspired by the shape of Lilium, Il Cremonese is a tribute to the most famous creation of Antonio Stradivari. Its five non-parallel walls structure and the sides applied on the enclosure, requires a careful processing techniques, as for a musical instrument: from the wood bending and shaping, to the treatments of the precious Avional surfaces.

THE ORETICAL PERFECTION

This is what we have in mind in designing the “acoustic environment” of each single transducer. Each volume is insulated with different materials from open cell thermoplastic foam to fibrous materials, similar to the felt used in pianos. The most appropriate material or materials are selected for each specific application.

FEATURES

This atypical Sonus faber form represents an evolution towards technological
and visual innovation, simultaneously maintaining the historic milestones
that marked the history of violin making, as well as the history of the Sonus faber brand itself.

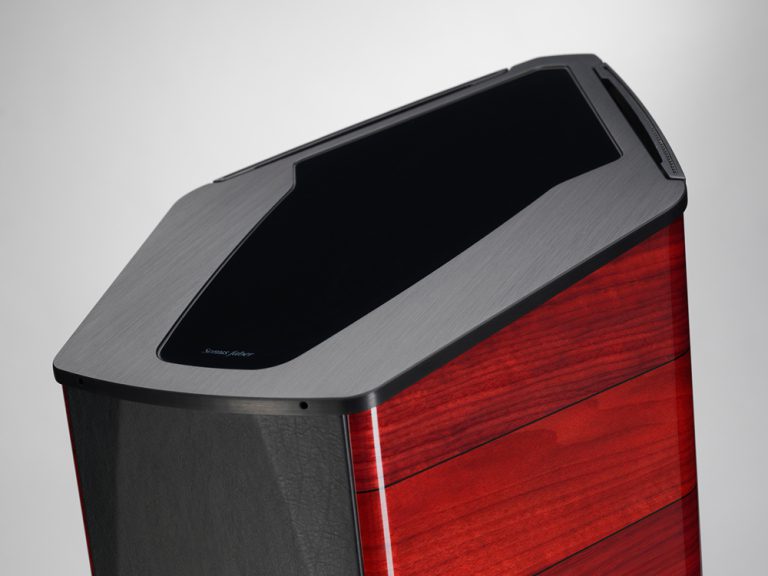

RHOMBOIDAL DIAMOND DESIGN

Il Cremonese innovative 5 sides cabinet “Rhomboidal diamond design” which optimizes the structural solidity of the wooden cabinets with a unique diamond shape that is immediately recognizable thanks to clean lines and an elegant, minimal, and sharp design.

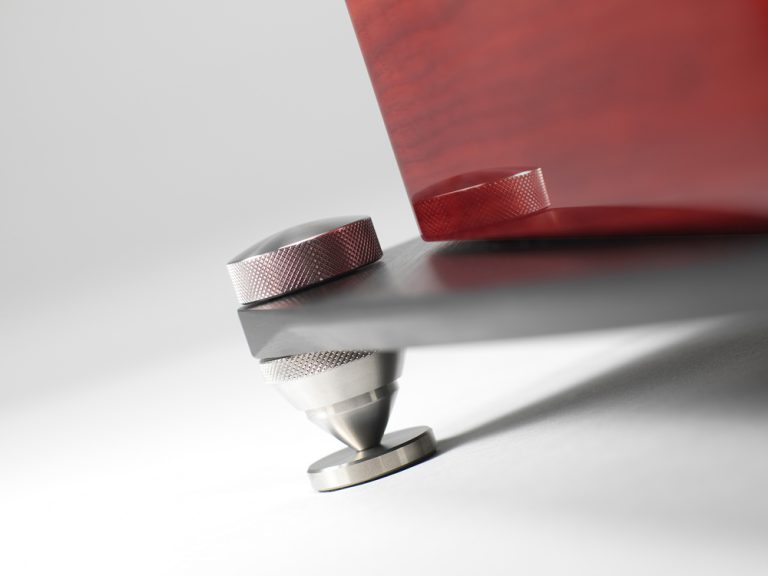

SILENT SPIKES™

Il Cremonese is mechanically decoupled from the floor through a new and innovative version of the patented system Zero Vibration Transmission™. The new implementation presents coaxial spikes metal / elastomer / metal that, compared to the previous version implemented on alternate surfaces, guarantees a further simplification in the construction and aesthetic lightness.

STEALTH REFLEX™

The patented “para-aperiodic” interpretation of the tuned load. Besides allowing for a reduction in the dimensions of the cabinet size, it provides greater extension of the low frequency response and a dramatic containment of every form of distortion; also eliminating spurious ‘port’ noises, typical of traditional reflex systems. Thus, also, substantially contributing to the correct sound reproduction.

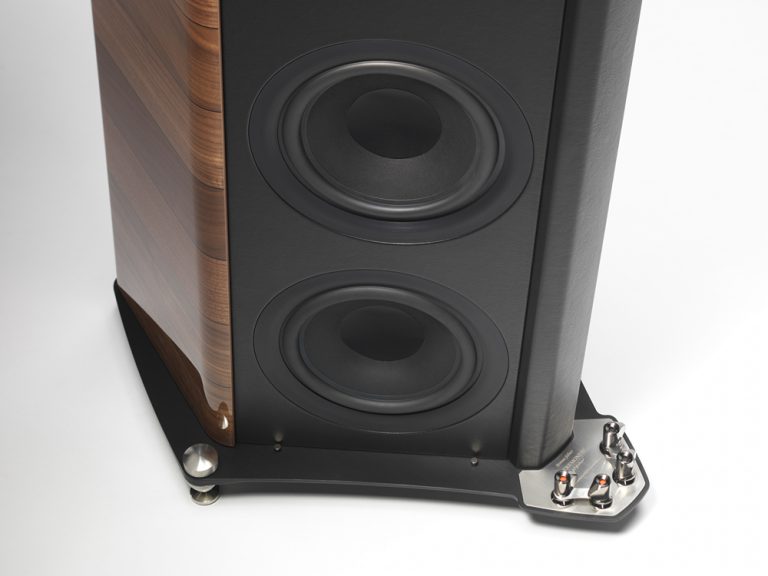

INFRAWOOFERS

SW 22 XT-08, a powerful 220 mm infra-woofer. To obtain maximum rigidity, the structure of the cone is made of a lightweight “sandwich” cone structure of syntactic foam and cellulose pulp. This is also implemented in an independent tuned enclosure, acoustically ‘amorphous Stealth Reflex™ chamber.

TECHNICAL SPECIFICATIONS

SYSTEM

3.5 way, full para-aperiodic vented box

LOUDSPEAKERS

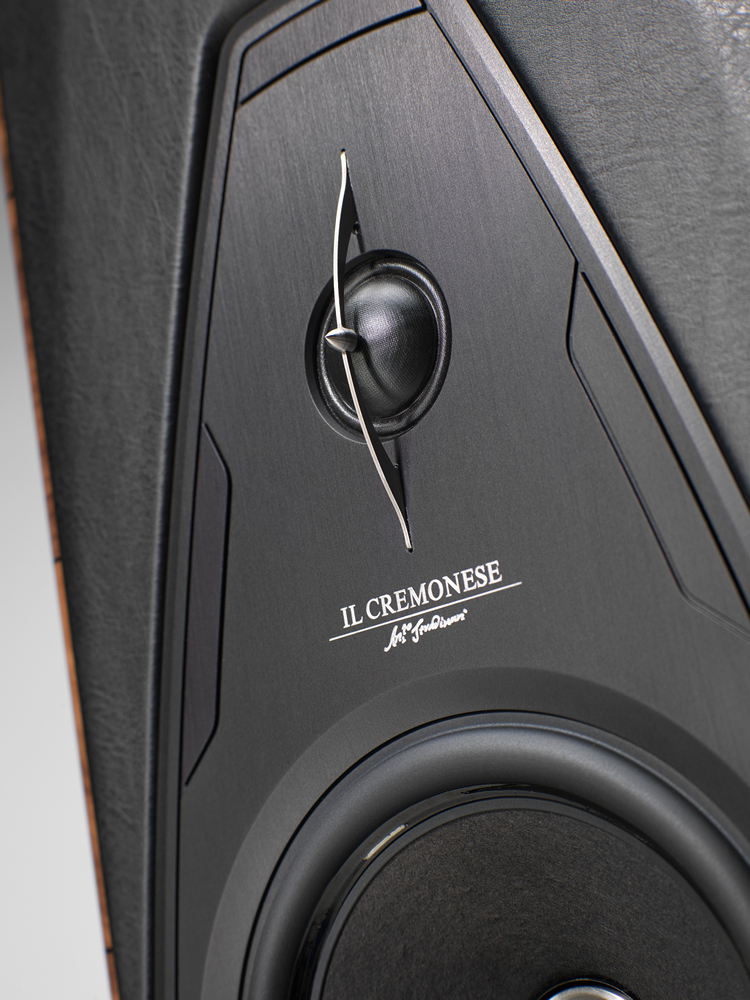

Tw: H28 XTR-04 DAD Arrow Point, Ø 28 mm

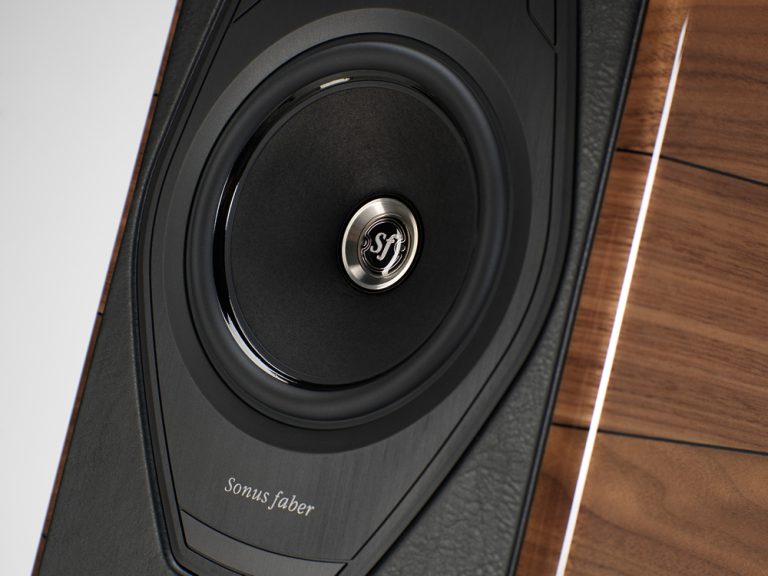

Md: M18 XTR-04 Neodymium Magnet System, Ø 180 mm
W: 2 x W18XTR-12, Ø 180 mm
Sw: 2 x W22XTR-16, Ø 220 mm

CROSSOVER

80Hz – 250Hz – 2500Hz

FREQUENCY RESPONSE

25 Hz – 35.000 Hz, tuning port included

SENSITIVITY

92 db SPL (2.83V/1 m)

NOMINAL IMPEDANCE

4 ohm

SUGGESTED AMPLIFIER POWER OUTPUT

100W – 800W, without clipping

DIMENSIONS (HXWXD)

1449 x 398 x 621 mm
57 x 15,6 x 24.5 in

WEIGHT

84 Kg ea – net weight
185 lb ea – net weight



AVAILABLE FINISHES:
